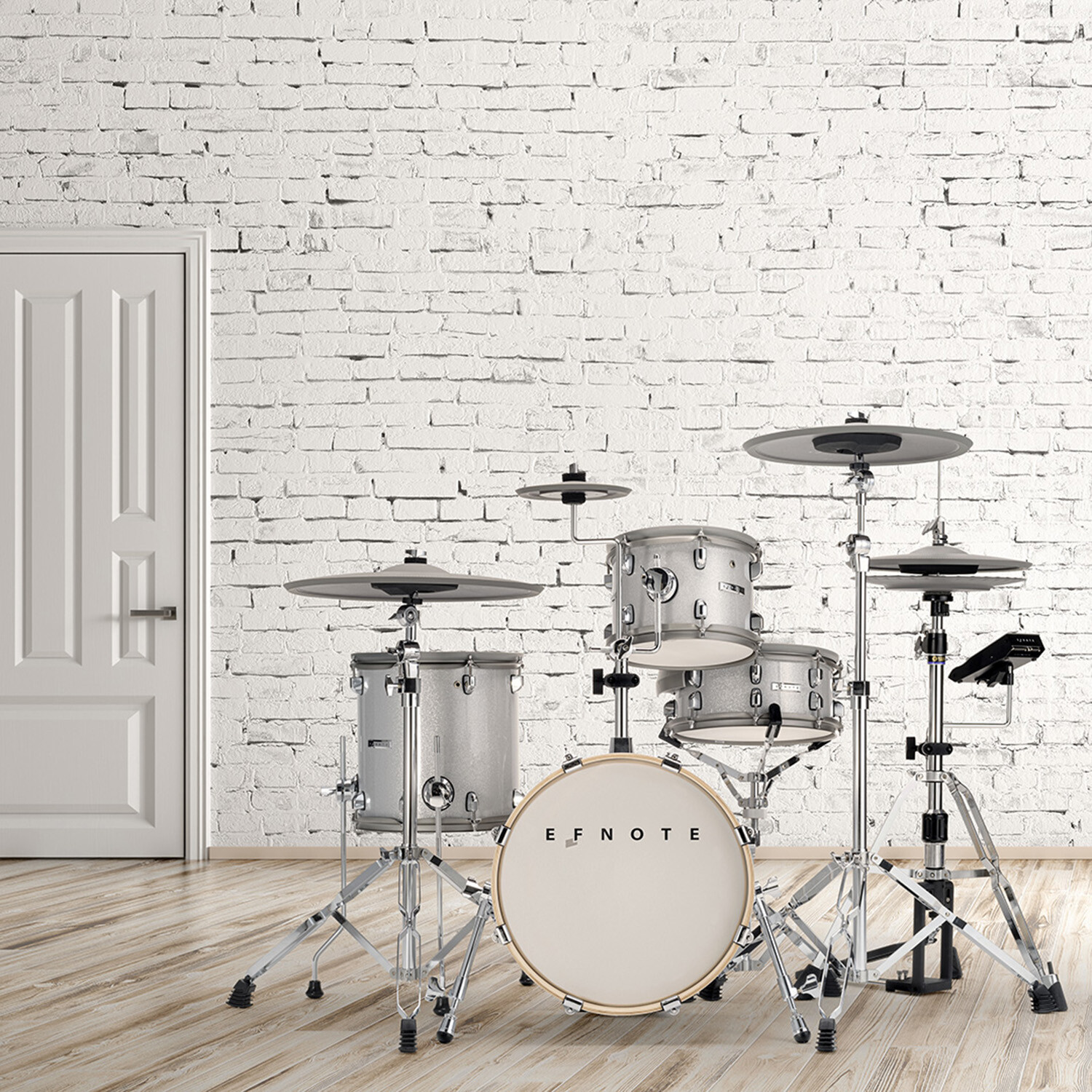

EFNOTE 5 // Acoustic Designed Electronic Drum Set

EFNOTE

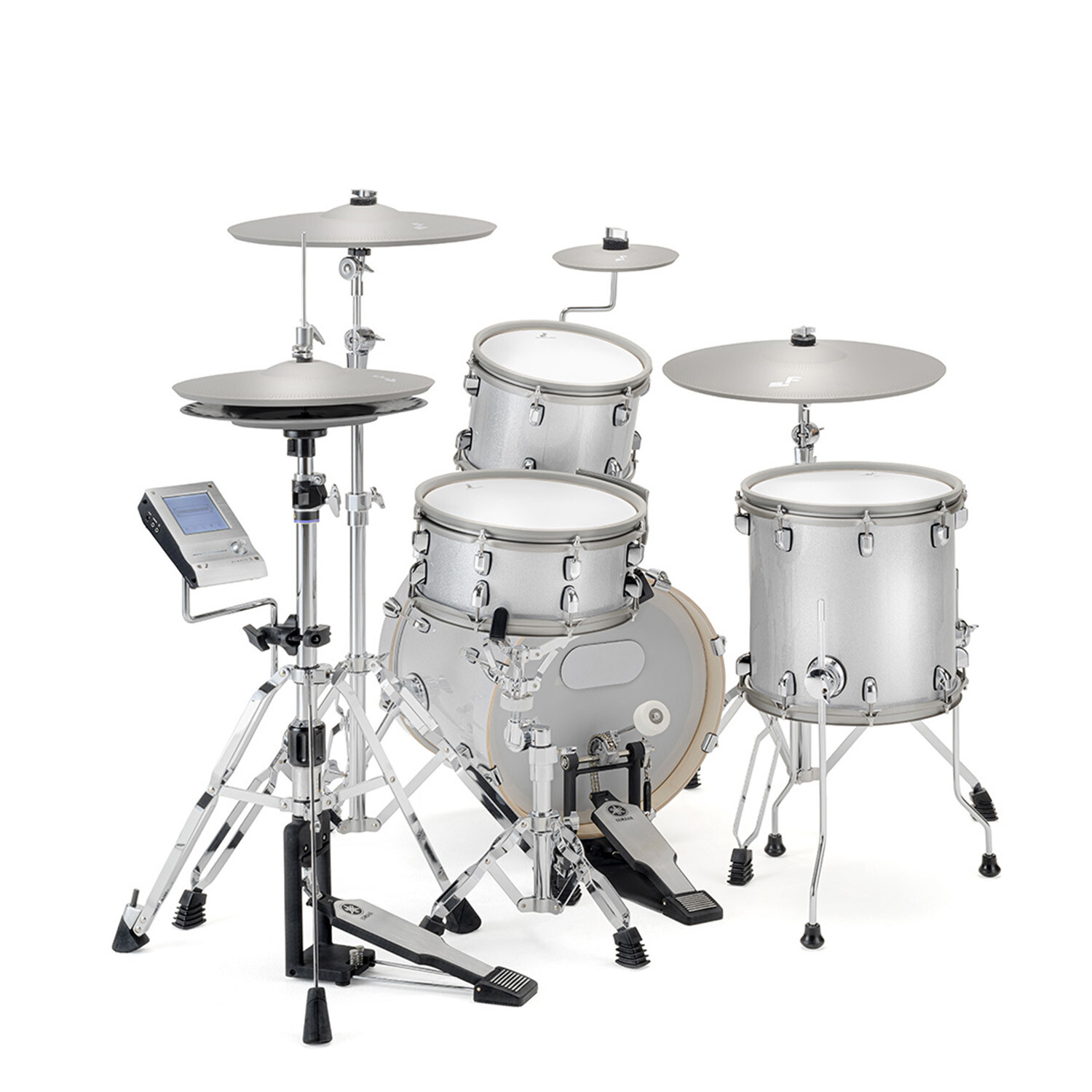

EFNOTE 5 // Acoustic Designed Electronic Drum Set

Login for Price

Product Description

The EFNOTE 5 offers a true playing experience with beautiful sound, perfect playability, and an elegant look. Despite its downsized looks, the EFNOTE 5 provides full-scale acoustic drum sound thanks to the Tru-Aco sound technology that uses minimal processing power to provide super-dynamic, uncompressed acoustic sound. Play along with your favorite songs to improve your skills, record tracks at home, or plug-in and perform live. With and next to no noise footprint, your loved ones, session mates, and neighbors will love you for it.

Combining a pleasing physical touch with the best sensing performance, the EFNOTE 5 offers great playability. The elegant finish and well-proportioned real birch 6-ply shells help to enhance its real acoustic drum sound. The ELISE sensing processor is newly developed for low latency, wide dynamic-range, and consistent and stable sensing.

The freely swinging top and bottom cymbals have changed the concept of electronic hi-hat cymbals with multiple optical sensing that precisely responds to drummer's high-speed footwork. All drum, cymbal, and hi-hat pads come with multi-sensors that provide consistent and stable sensing to capture the drummer's intentions from each and every stroke.

For Training
— Multi-function Metronome With Beat LED Indicator
— Built-in Metronome Speaker For Daily Training Without Headphones
— On-board Recording Function (15 Songs)
— Stroke Analyzer
— Rhythm Box Feature Provides Over 90 Basic Drum Beats

For Recording
— USB 8-ch Individual Audio Outputs With Mac / Windows (ASIO)
— USB 2-ch Audio Inputs For Playback
— Analog 4-ch Audio Outputs
— USB MIDI In/out With Individual MIDI Channels
— MIDI Output (5-pin DIN)
— On-board Drum Recording (15 Songs)

For Small Gigs
— Setlist Feature Enables You To Configure Kit Order With Tempo For Each Song
— Kick And Snare Can Be Output Individually With Analog 4-ch Outputs
Click And Audio-In Can Be Assigned Only For Headphones
— High-power Headphones Output
— MIDI Output (5-pin DIN)

Product Details

ColorsWhite Sparkle
Materials
Aluminum, Fibre-reinforced Plastic Shell
OriginChina

— Warranty: Manufacturer's 1 Year

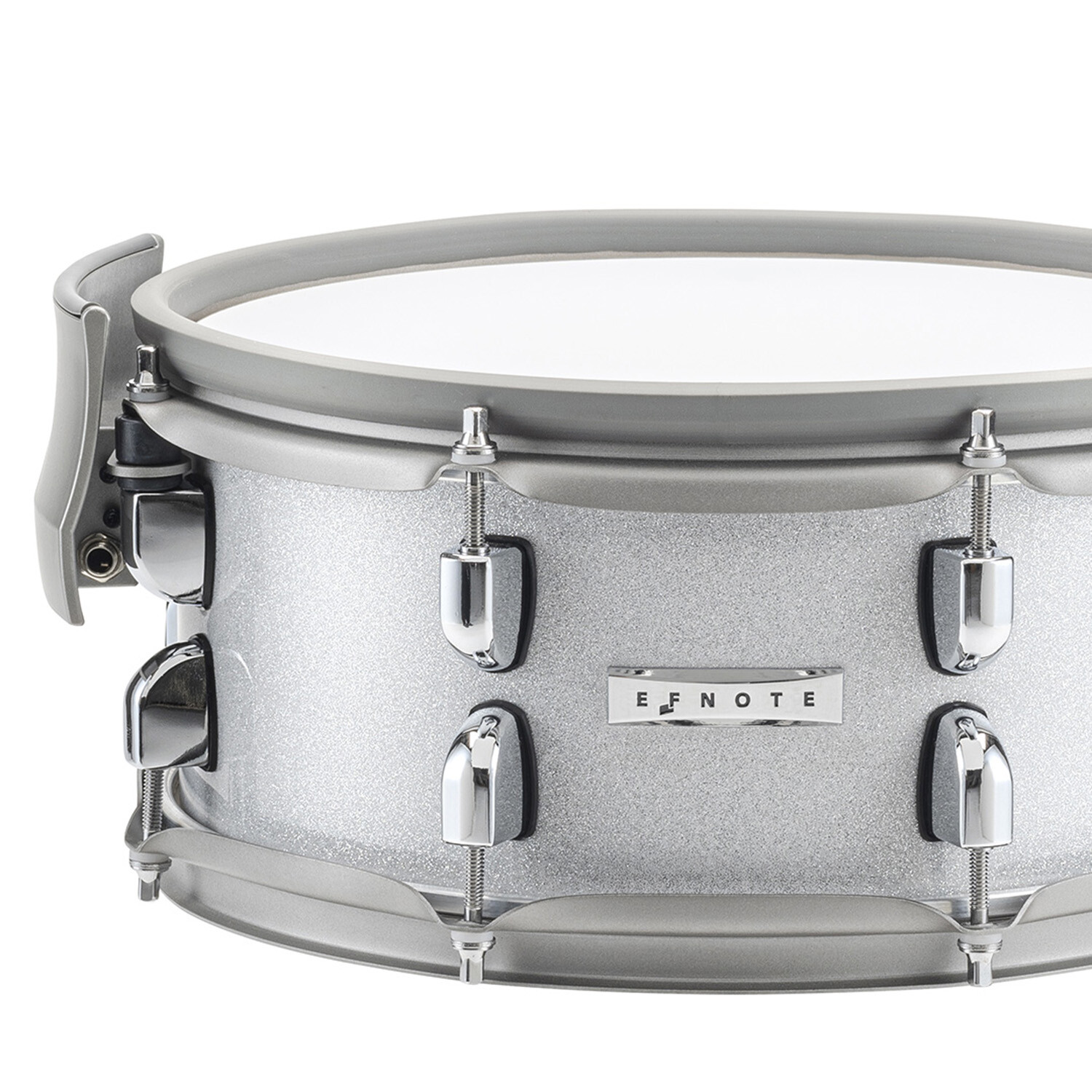

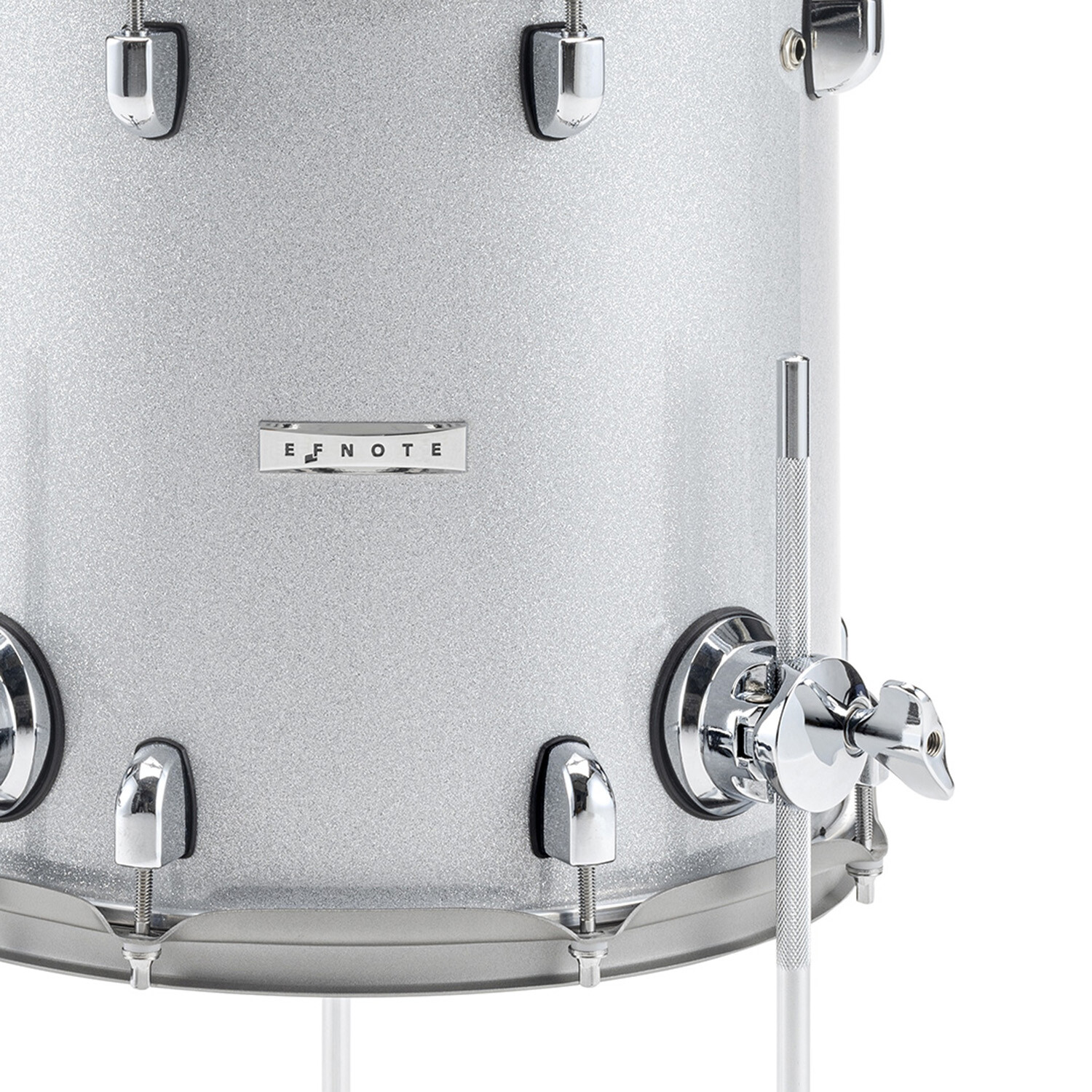

3-Zone Snare Drum And 2-Zone Toms
— 3-zone Snare Drum (head/rim/side-rim) And 2-zone Toms (head/rim)

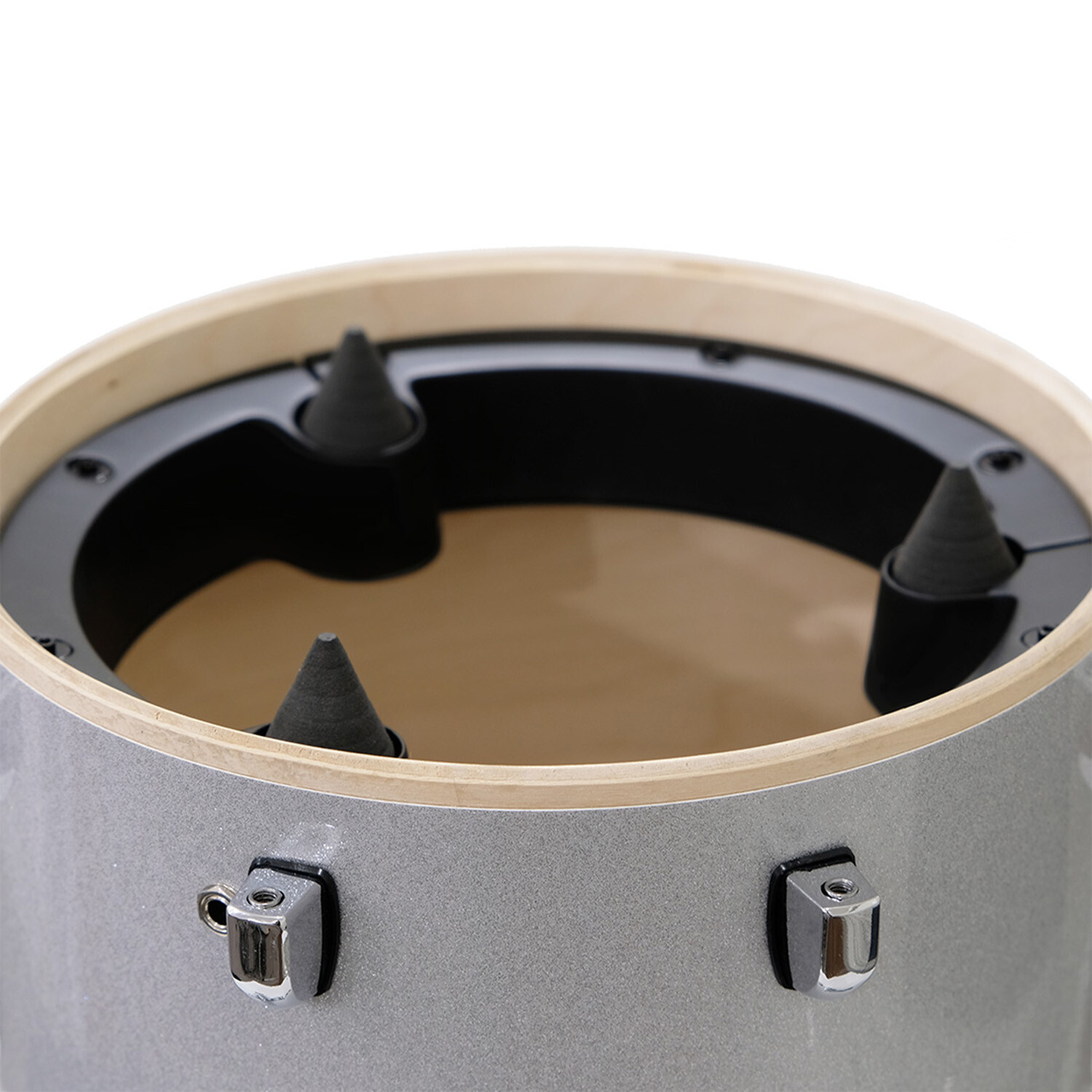

— Hot-spot-less Sensing With Multi-sensor
— Double-layered Mesh Drum Head
— Durable "warm-gray" Colored Hoop Rubber
— Birch 6-ply Wood Shell
— 12x5" Snare, 10x7" Rack Tom, 12x12" Floor Tom

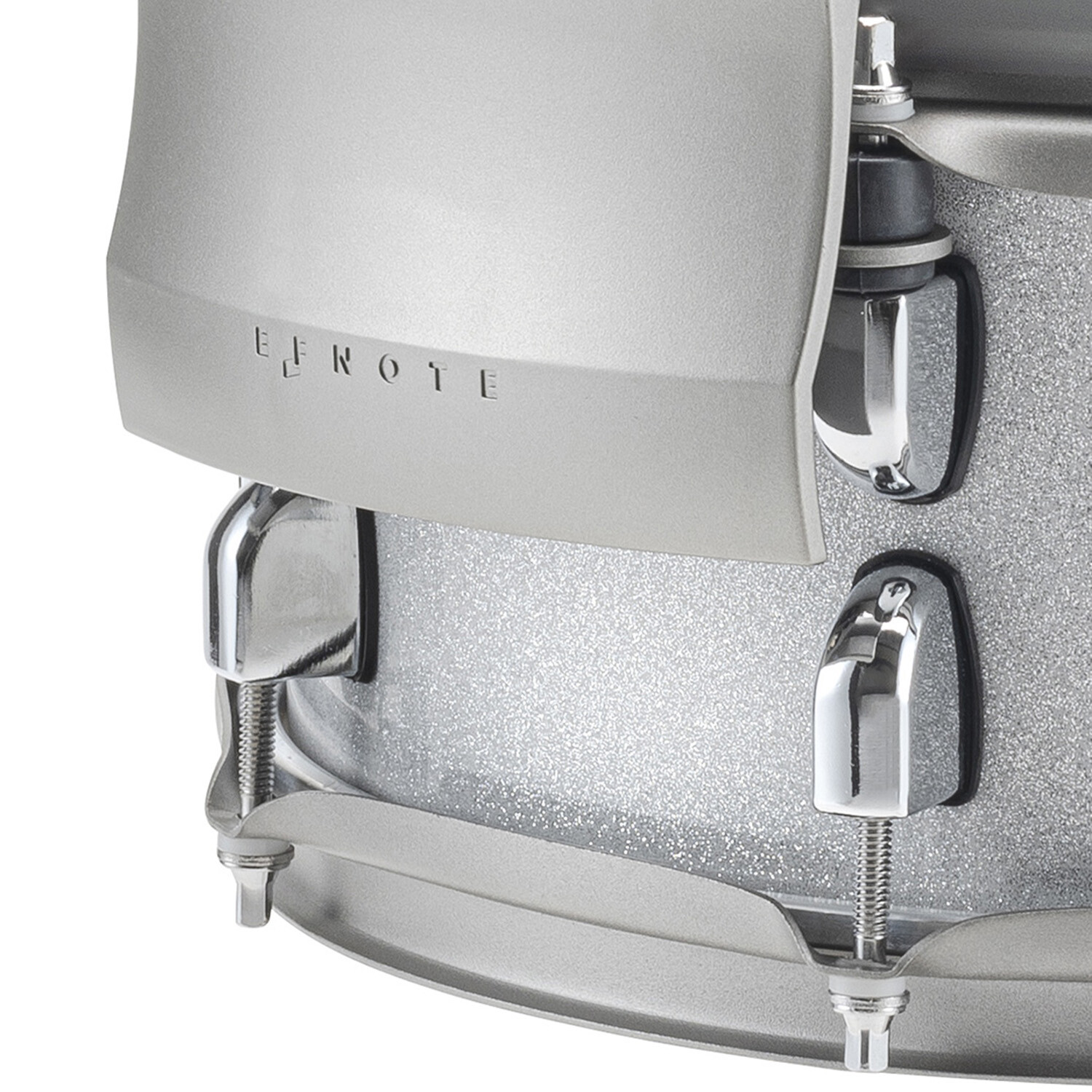

Snare Side-Rim
— Easy To Play Side-sticks
— Accurate Sensing
— Low Acoustic Noise
— No Need To Switch Function Between Rim-shot And Side-sticks

Solid And Stable Kick
— Voluminous Shell With Mesh Drum Head To Catch Powerful Kicks
— Dual-sensor Stable Sensing For Single/double Beater(s)
— Storable And Sturdy Spars With Rubber/spike Tips
— 16x12" Birch 6-ply Wood Shell

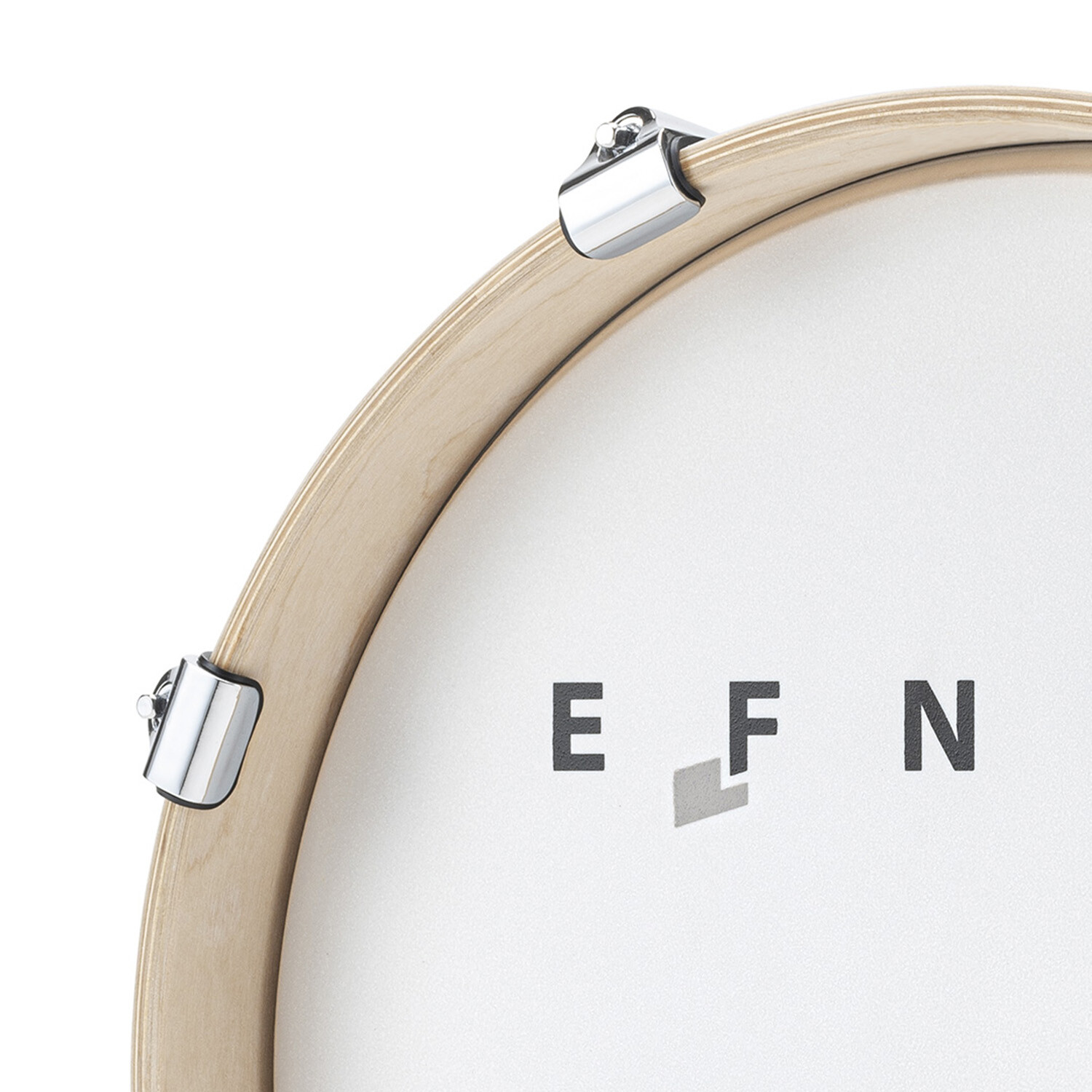

— Real Wood Hoops

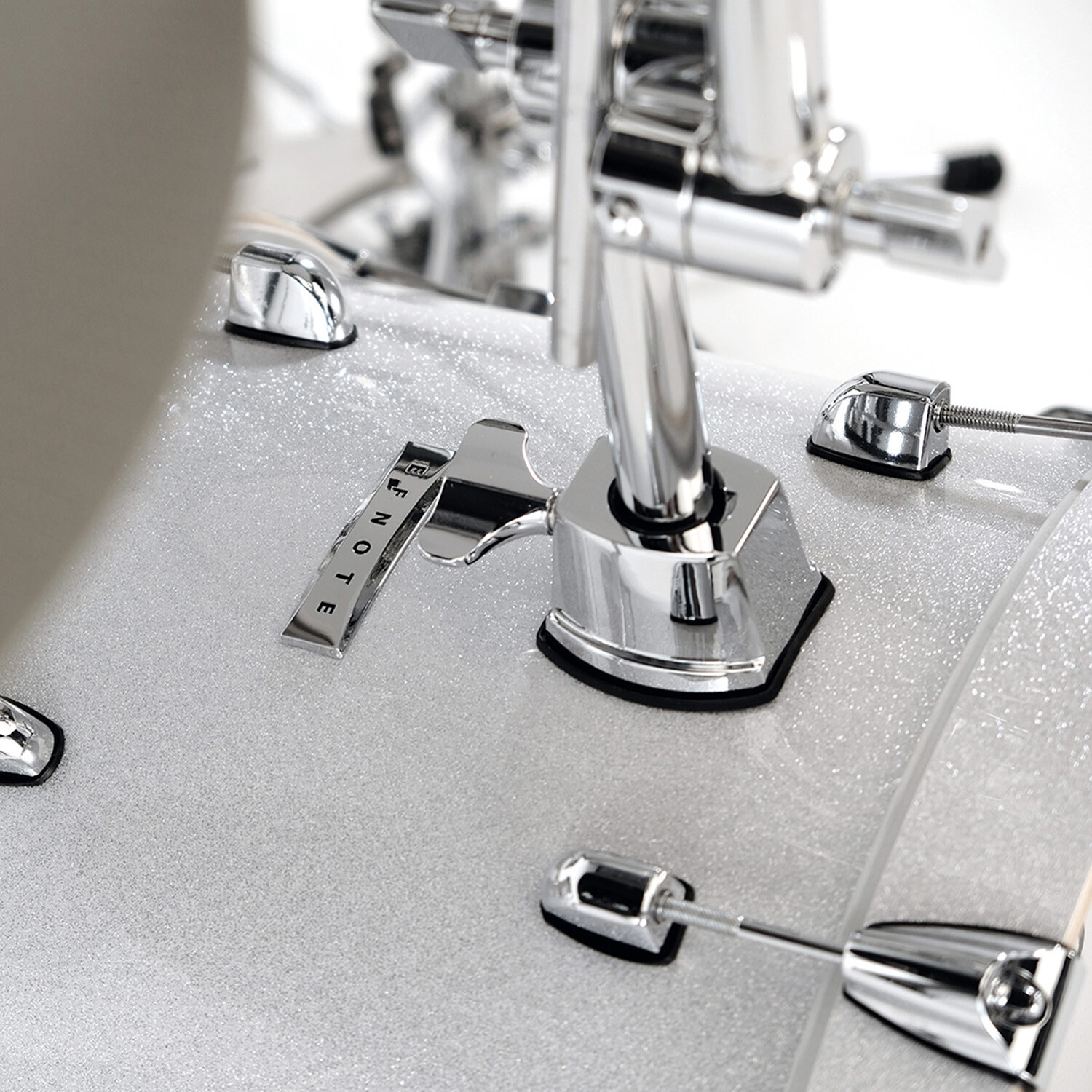

— Metal Tom Mount

3-Zone Crash / Ride Cymbals
— Elegant "warm-gray" Colored Cymbals

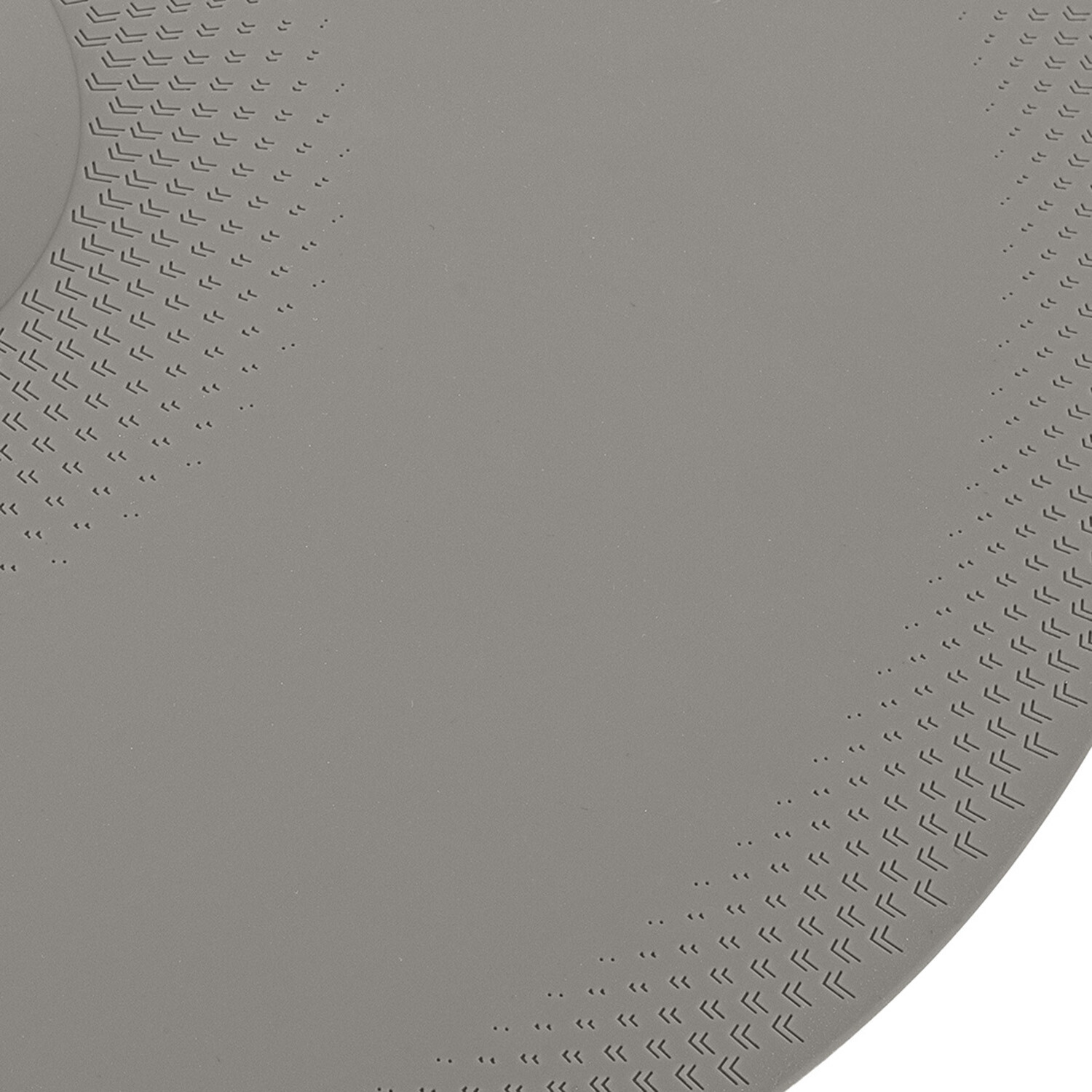

— Fine Engraved Surface
— Weight Simulation With Thin Edge For Appropriate Striking Feel
— 360° Flat Sensing With Multi-sensor
— 360° Choke Supported
— Full 3-zone Crash/Ride Cymbals (bow/edge/cup)
— 18" Ride, 16" Crash

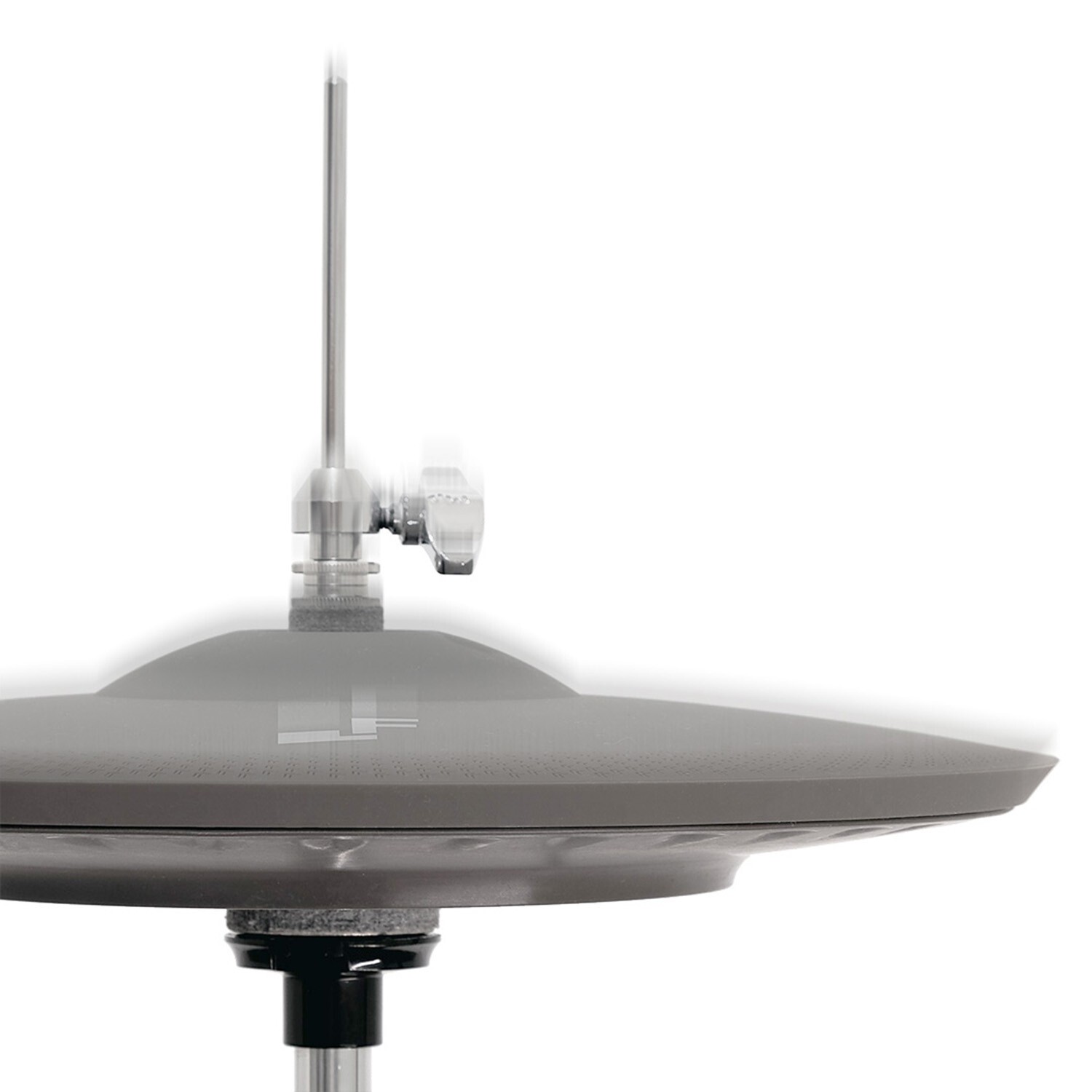

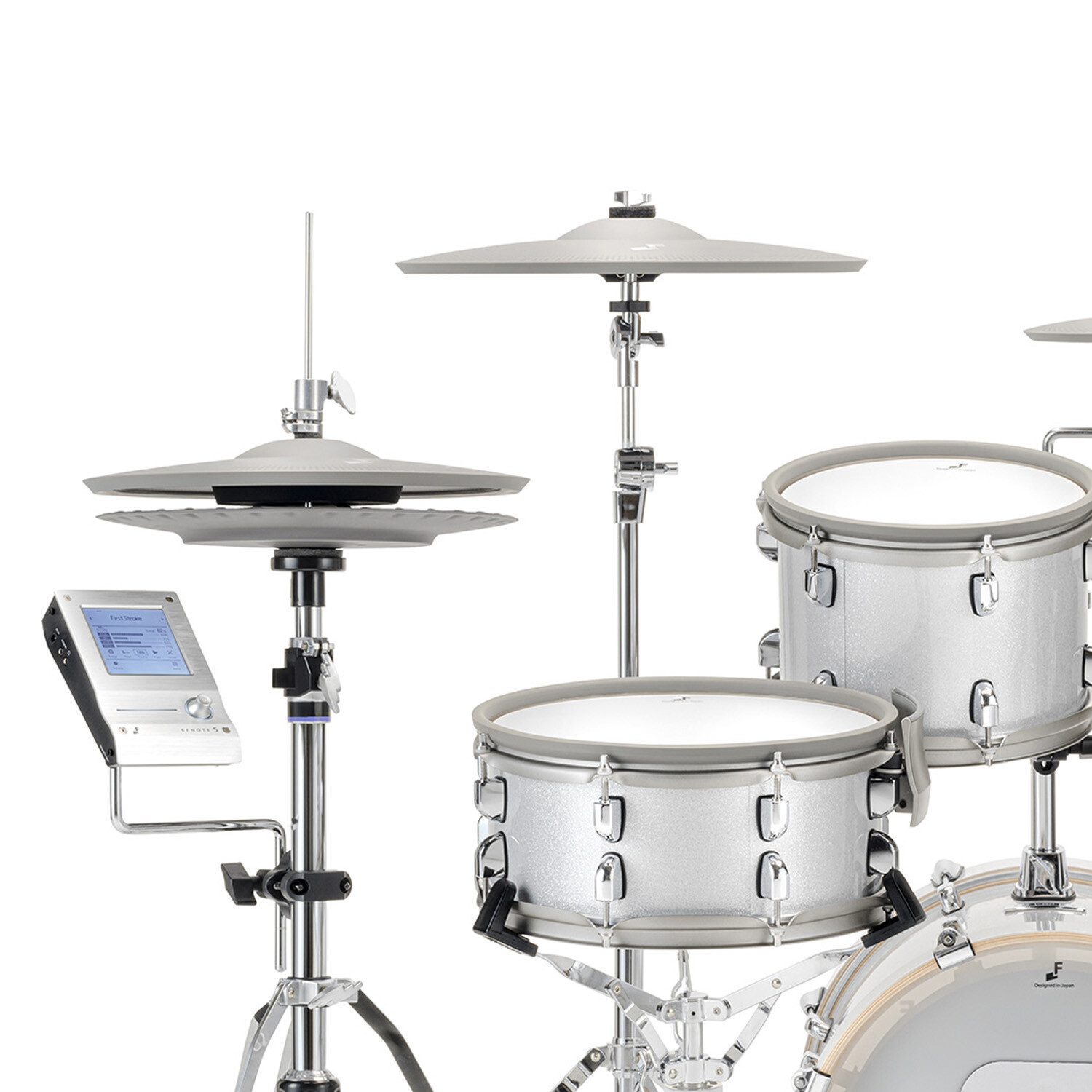

The Finest Hi-Hat Cymbals
— Smooth Continuity From Tight-closed To Full-open Sound
— 14" Top/bottom Cymbals
— General Hi-hat Stands Compatible With Φ12.7 Mm (1/2") Hole Cymbal Can Be Used

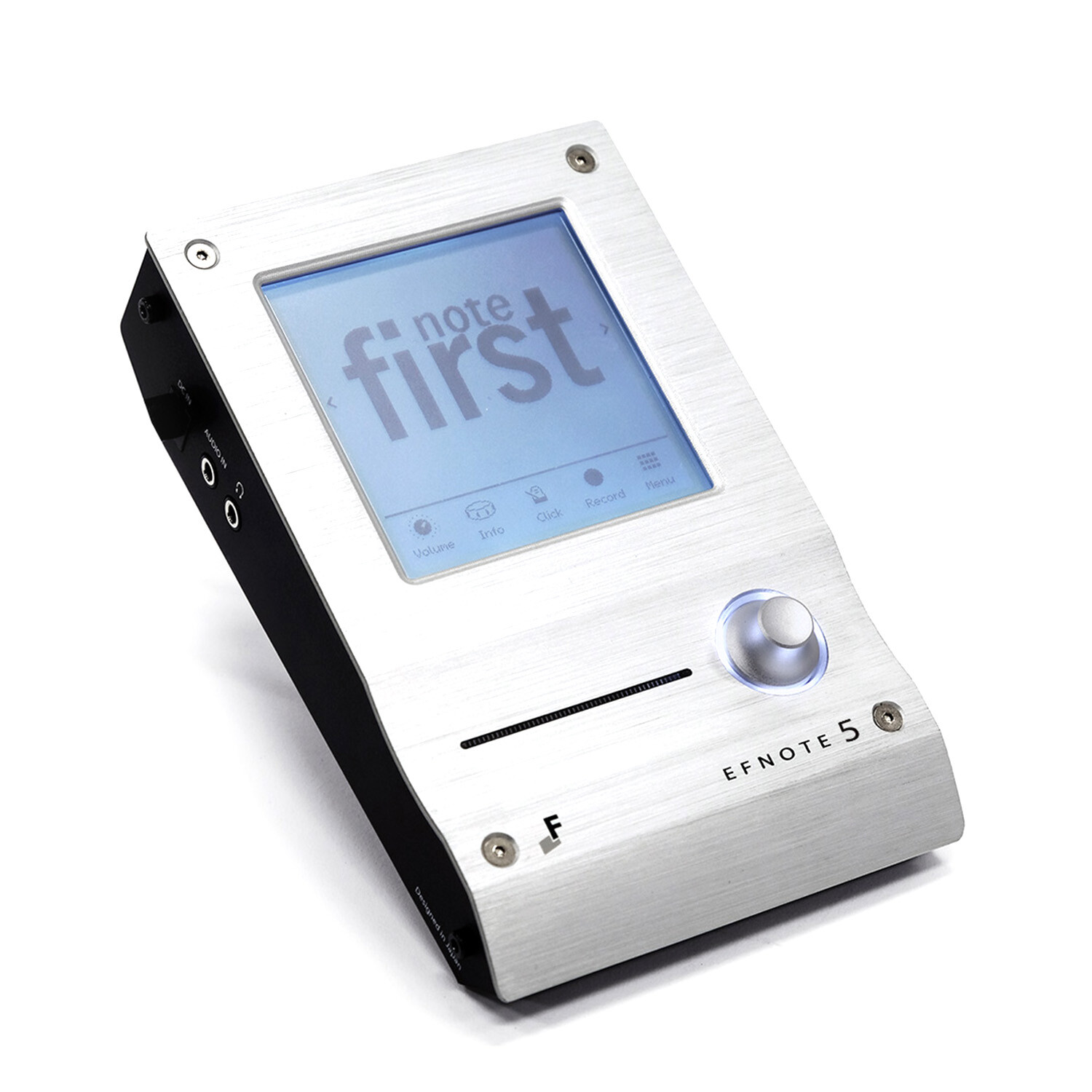

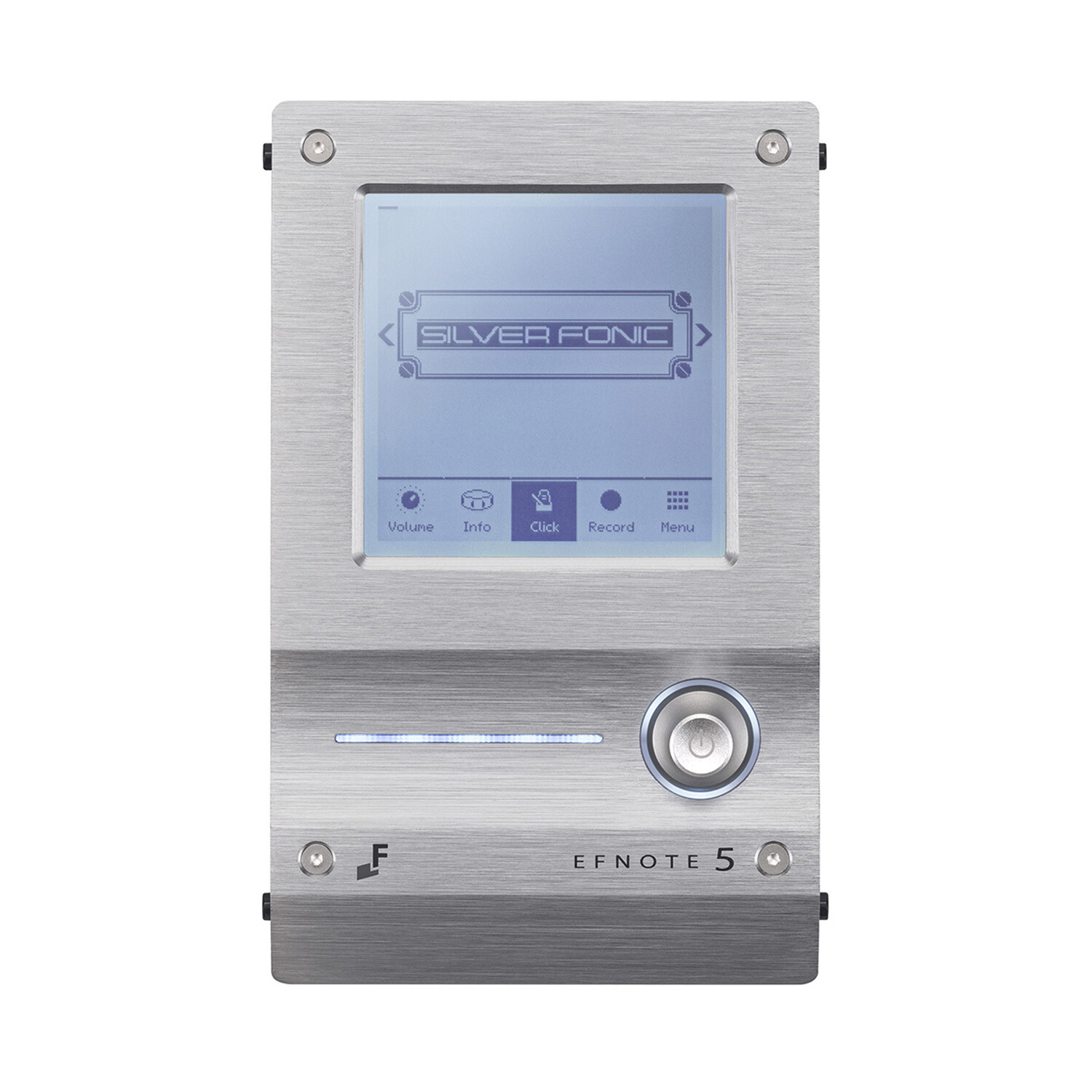

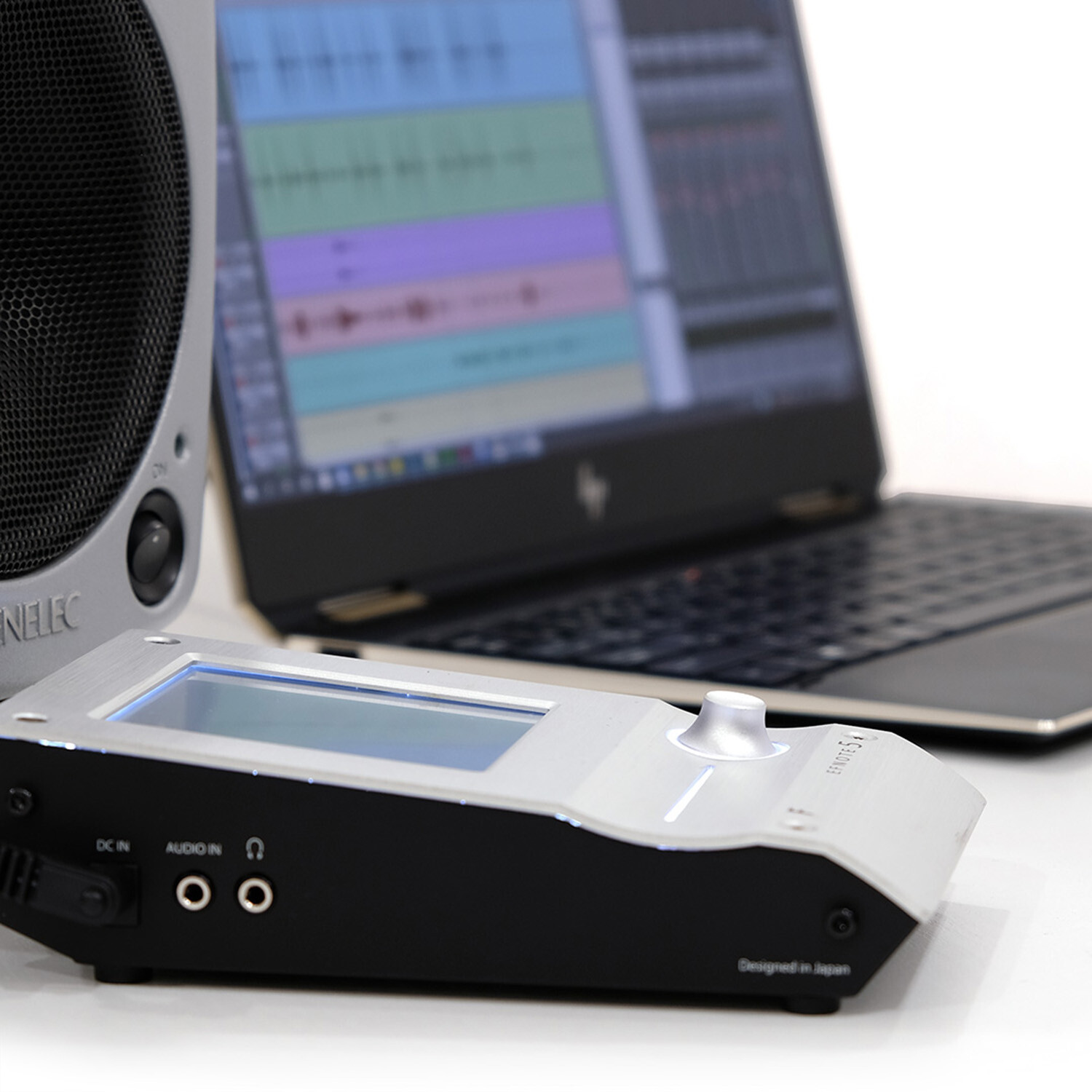

Ultra-Compact Sound Module
— Ultra-small Form Factor With Uncompromised Features

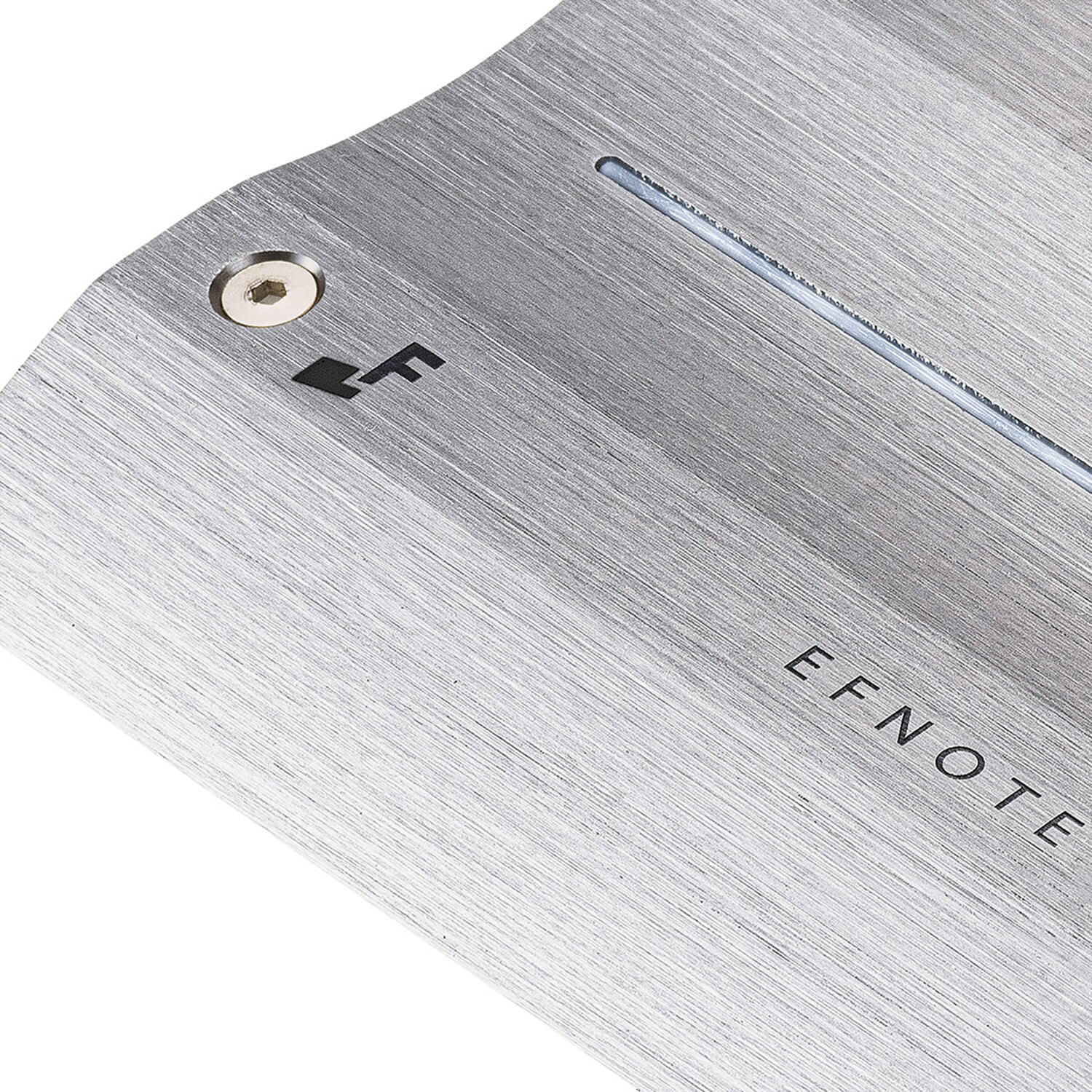

— Metal Chassis And Aluminum Finish
— High Quality DAC And Audio Circuit

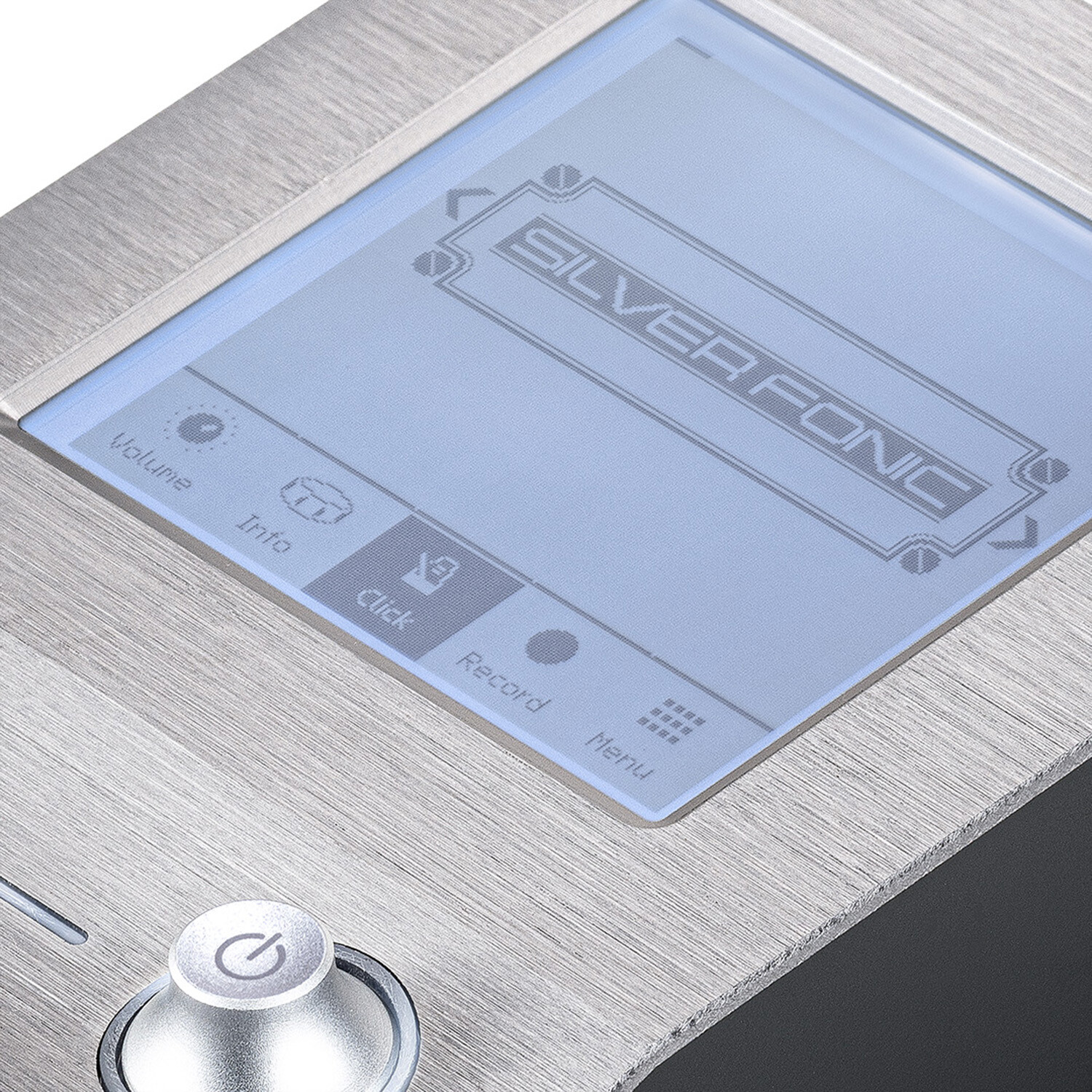

—Touch Screen Intuitive User Interface

Full-Scale Acoustic Sound
— Tru-Aco Sound Technology Provides So Real Drum/cymbal Sound
— Stereo Samples With Wide Dynamic Range For All Acoustic Instruments
— Minimum Pre-processed, Uncompressed Waveforms For Maximum Fidelity
— Natural And Smooth Continuity Roll Sounds

Stroke Analyzer
— "Stroke Scope" Displays Your Strike Points On Time-line
— "Accuracy Score" Estimates Your Strike Accuracy

Sound Edit
— Tuning, Muffling, 2-band EQs For Each Pad
— Pad Layer Function Can Overlay Two Sounds
— User Inst Library Enables You To Store 128 Customized Instruments
— On-board Reverb
— Dedicated Level Control Screen

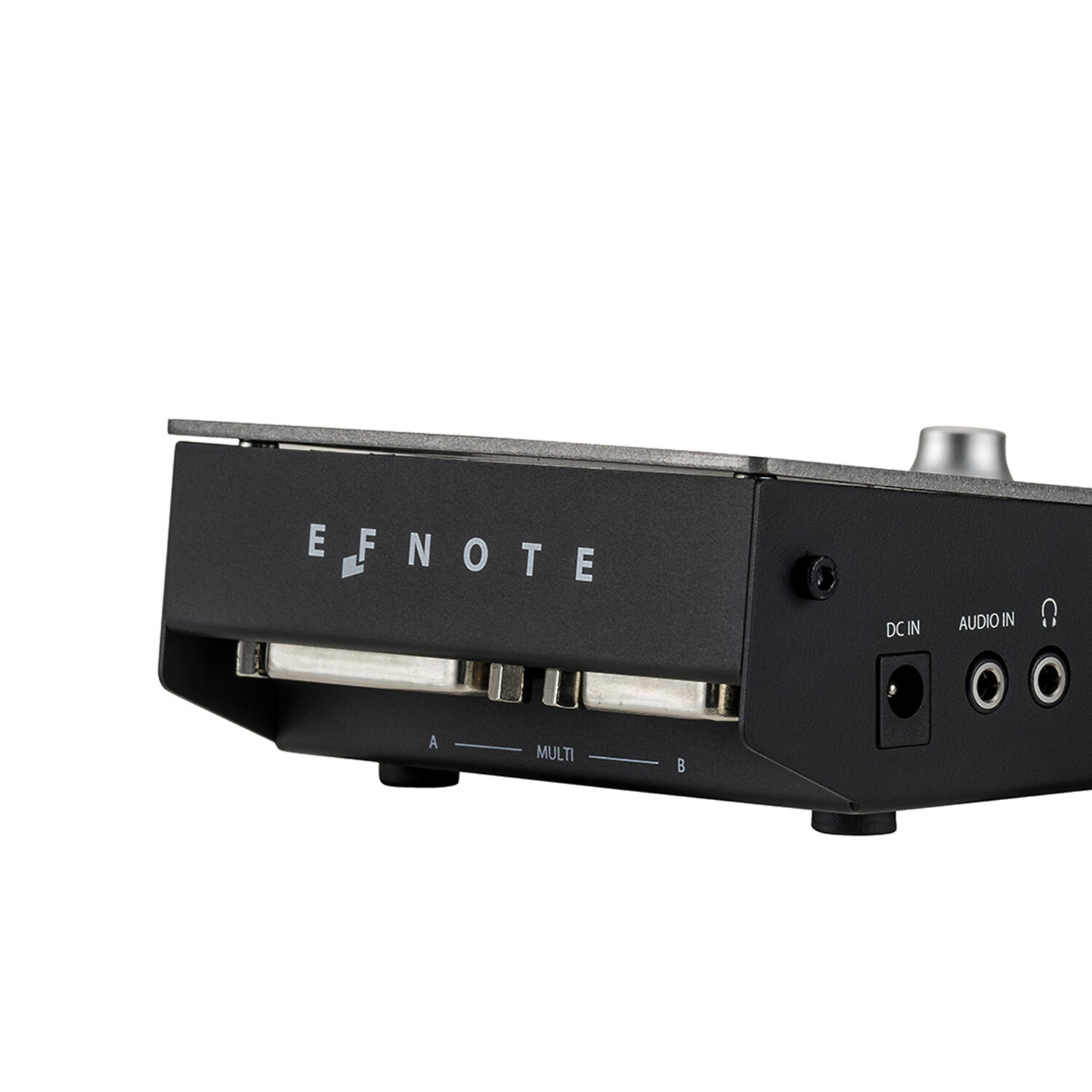

Flexible Audio Routing
—10-ch Output Buses
—Flexible Output Routing For Each Pad
—Output Assignable Click
—Output: 4-ch Analog / 8-ch USB
—Input: Analog / Bluetooth / 2-ch USB

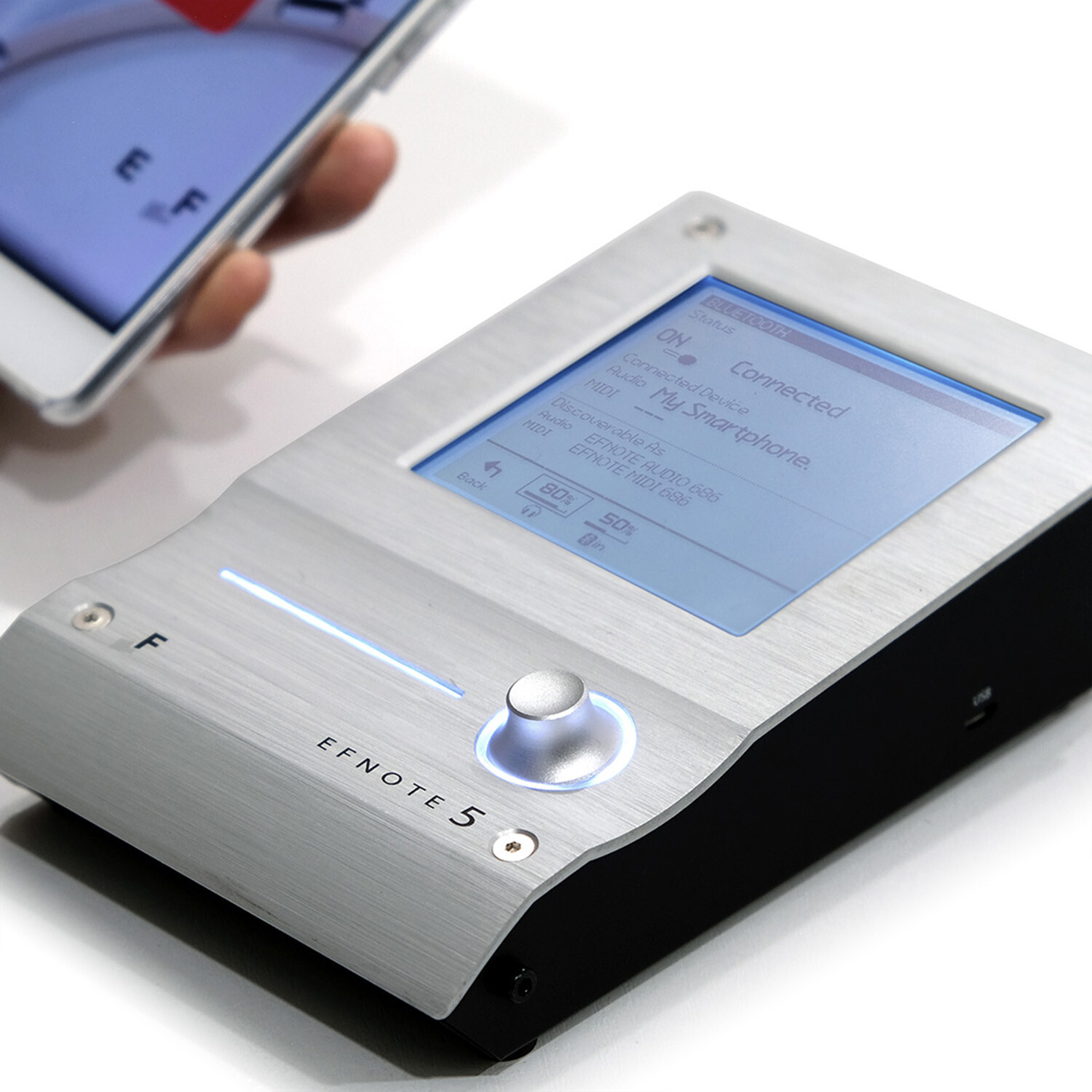

Bluetooth™
— Bluetooth Audio-in Provides You To Play Along With Spotify™ / YouTube™ With Your Smartphone
— Bluetooth MIDI

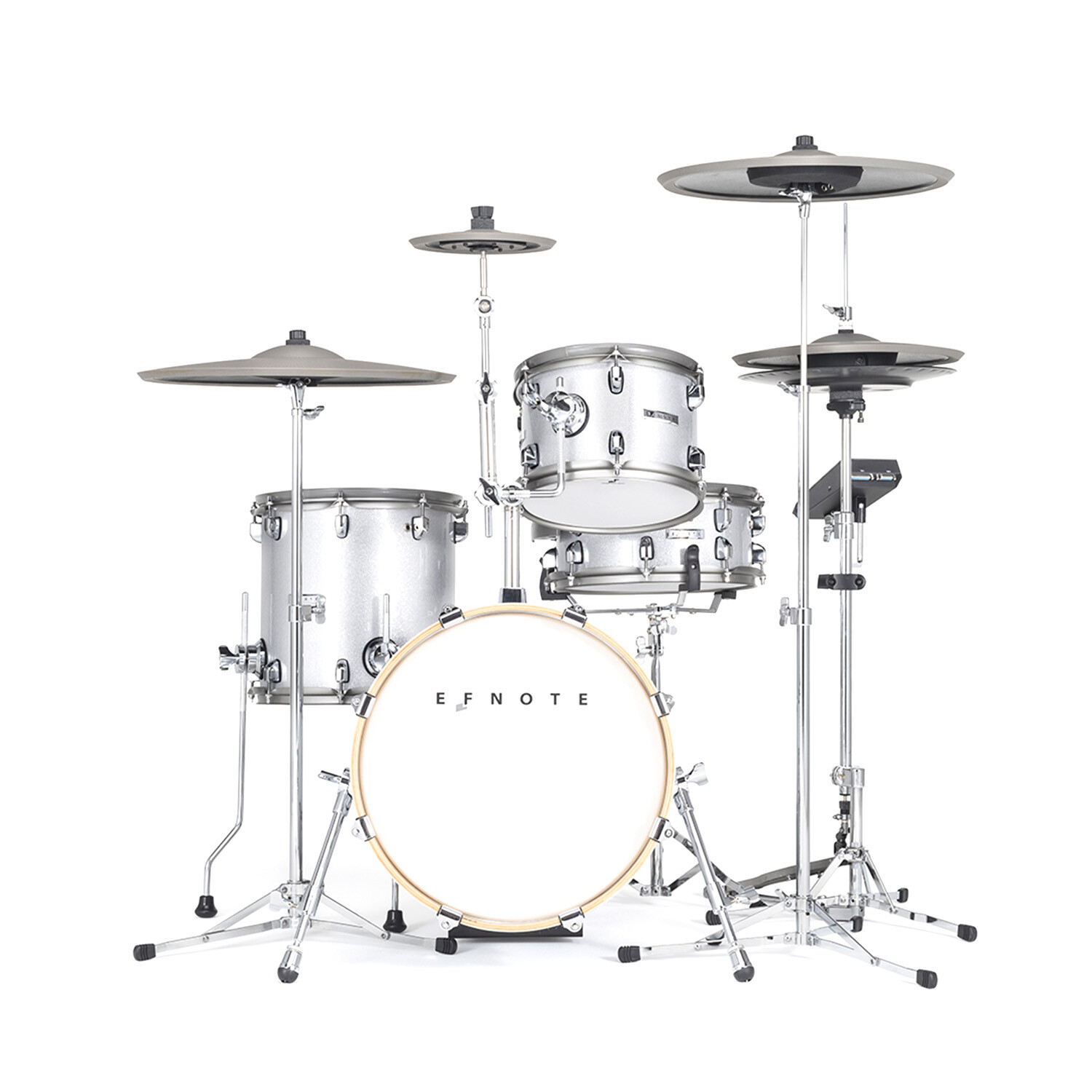

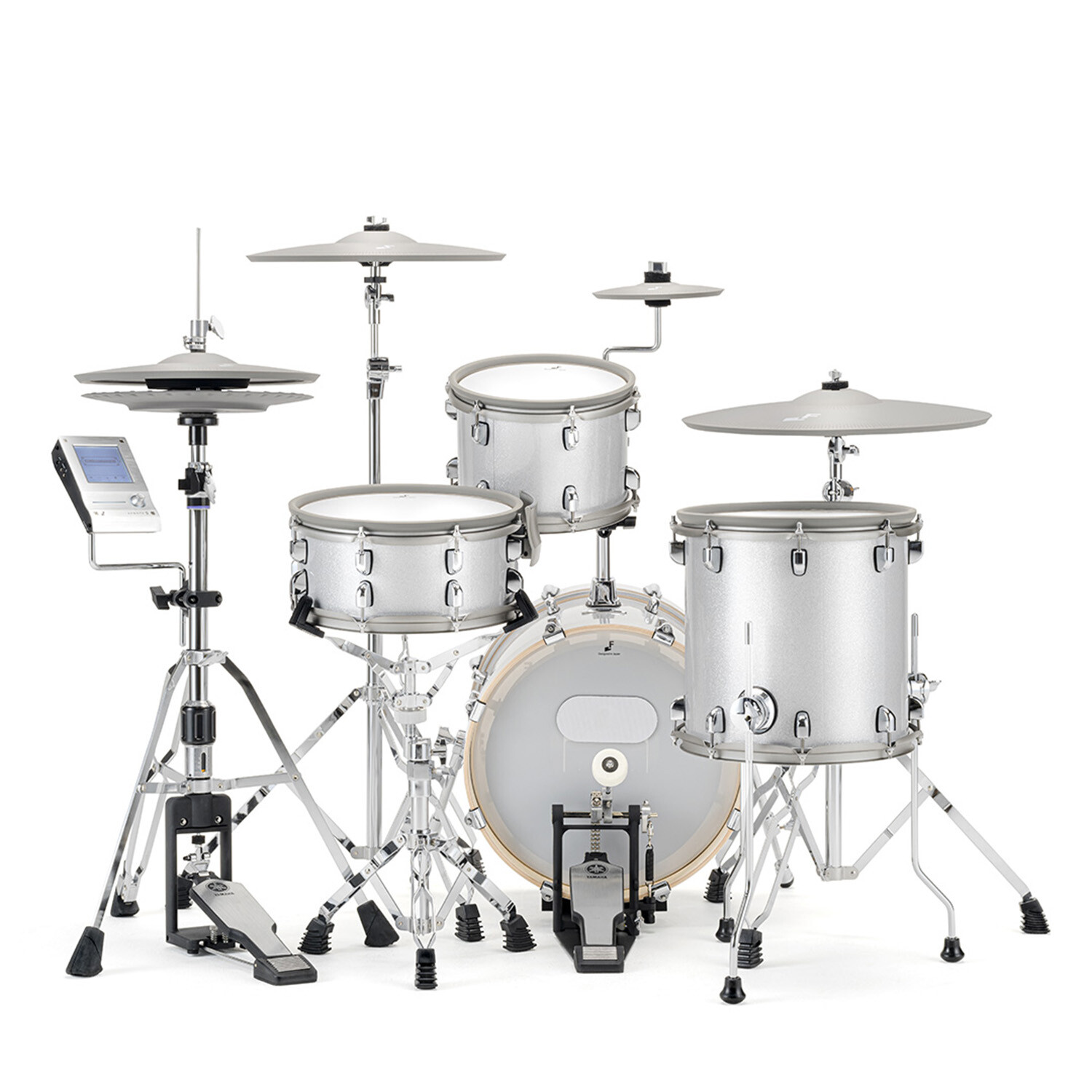

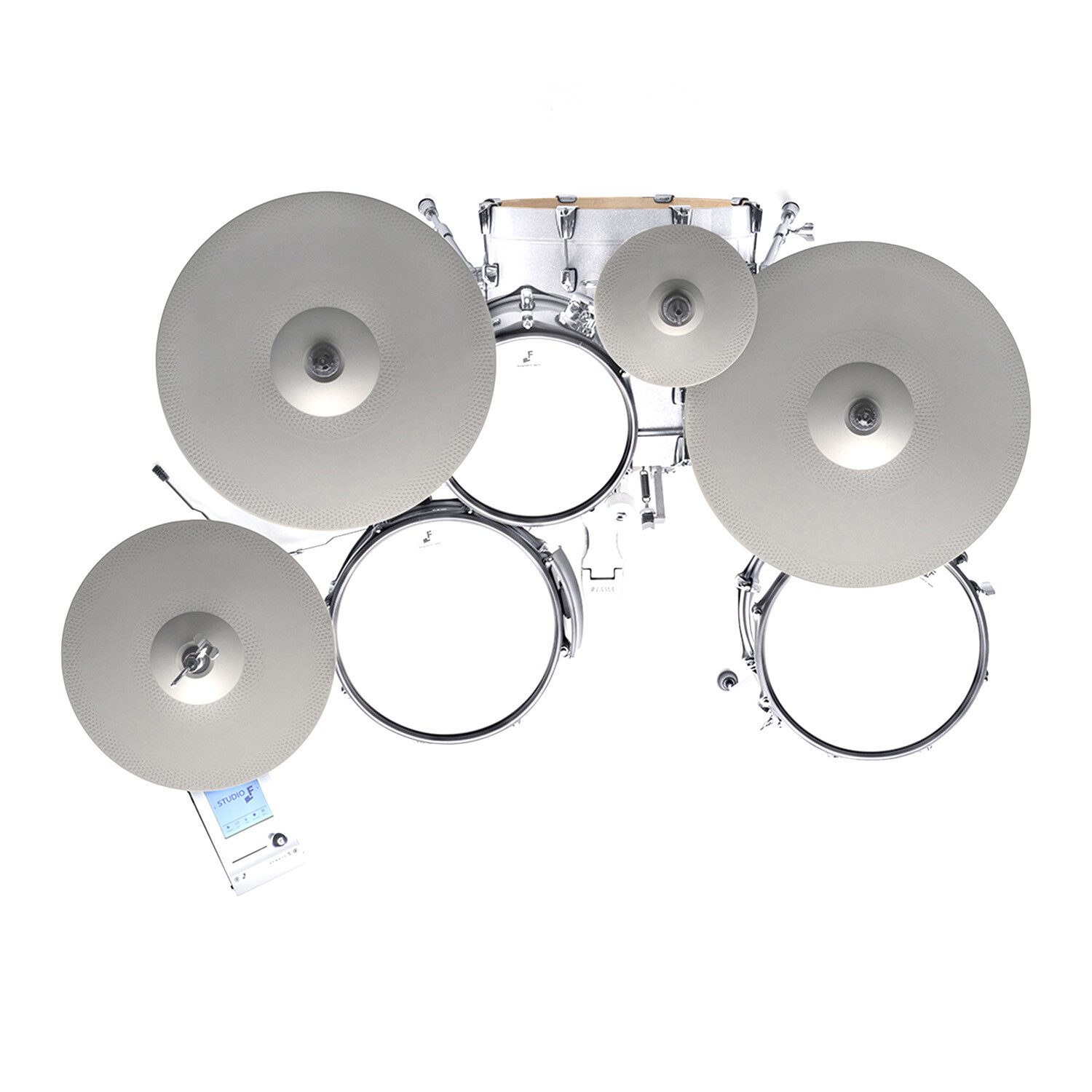

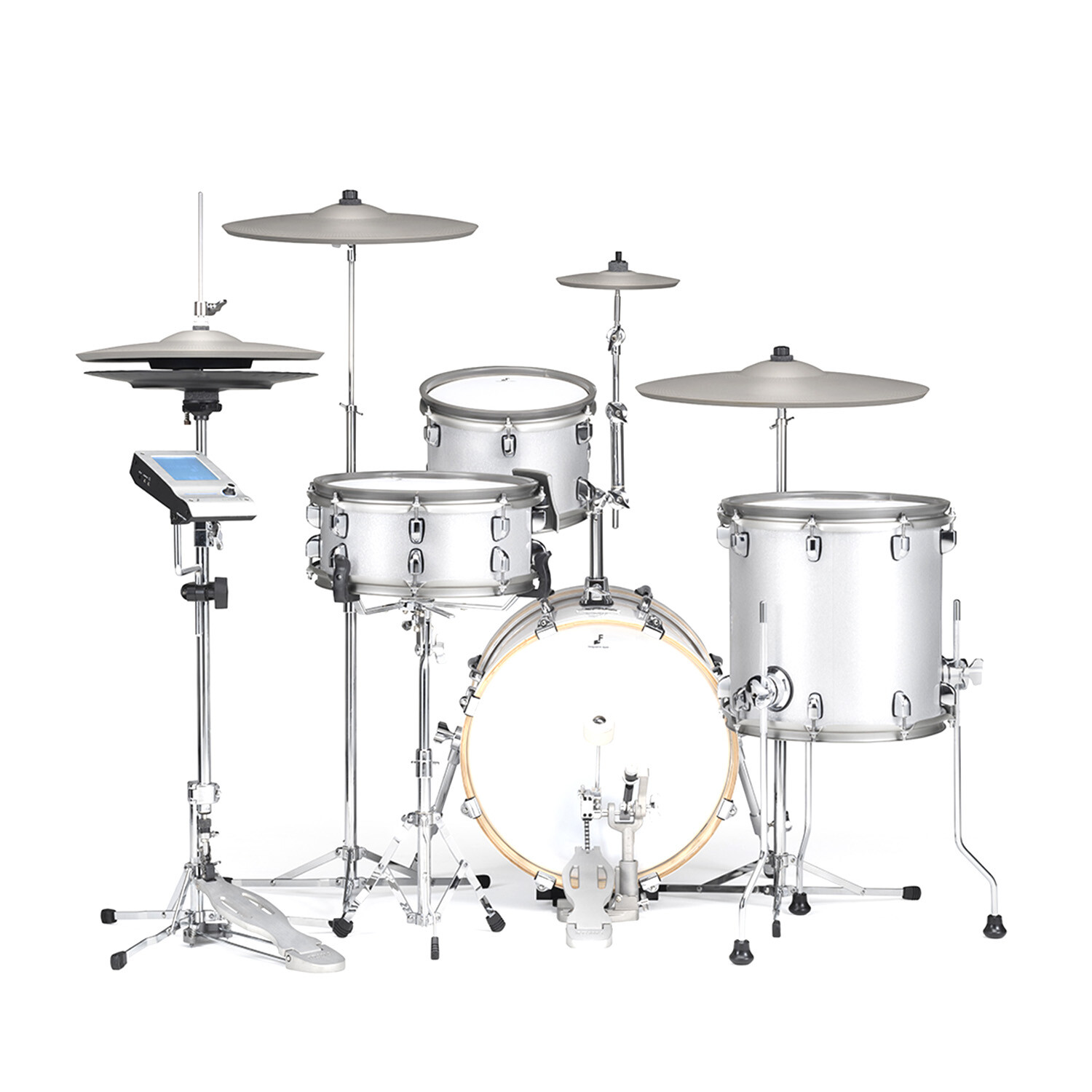

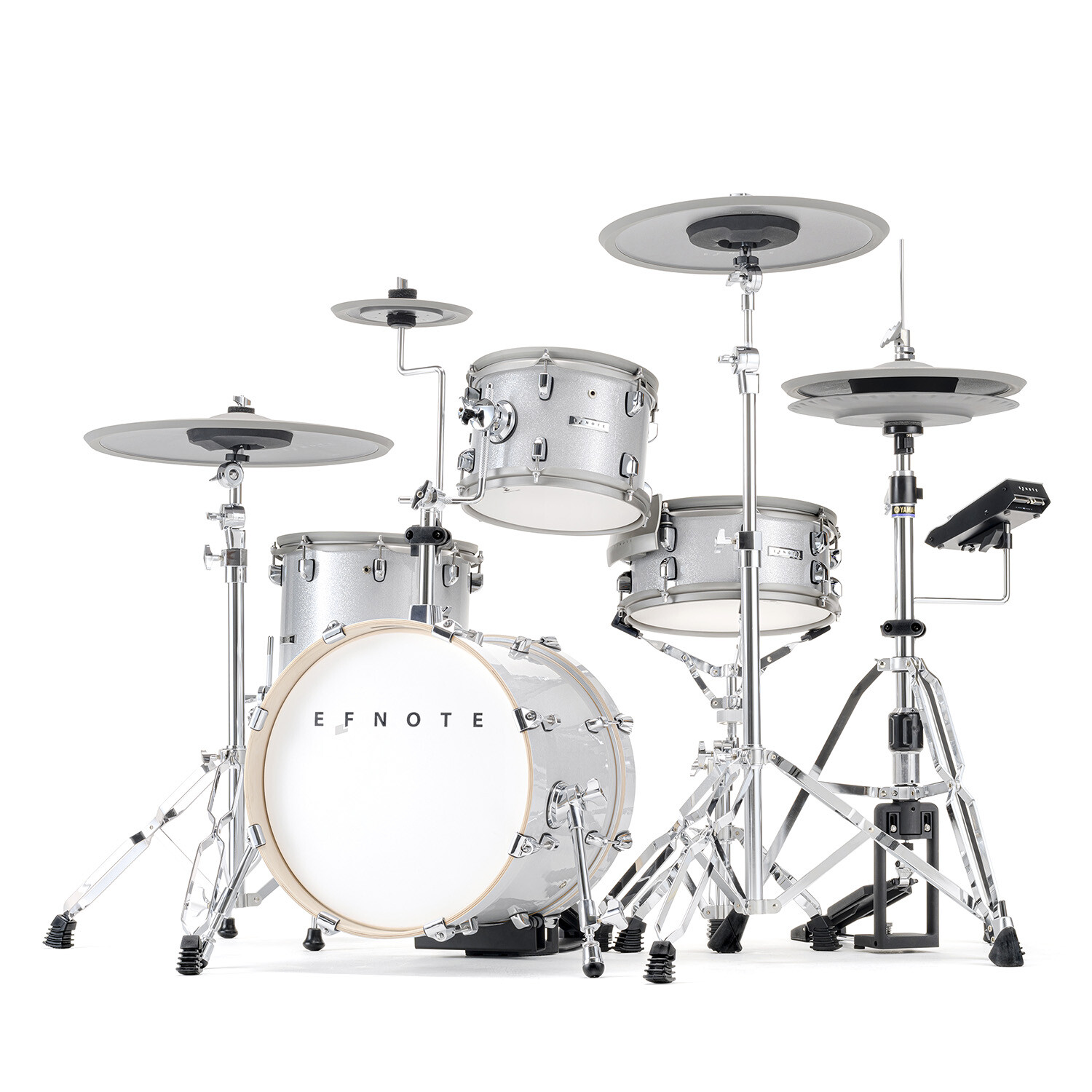

Includes
— Sound Module
— Kick: 16 x 12”
— Snare: 12x5”
— Tom1: 10x7”
— Floor Tom: 12x12”
— Hi Hat: 14”
— Crash: 16”
— Ride: 18”
— Splash: 8"
— Brake-out cable: EFD-MULTI-A5
— Brake-out cable: EFD-MULTI-B
— 5x Trigger cable 3.0 m: EFD-TRS-LL3
— Cable ties
— Quickstart guide

FAQ

Does it come with the snare and cymbal stands?

The snare drum stand and cymbal stands are not included in the sale.
