PLK 200W Portable Solar Panel Kit // Lightweight Briefcase + PX20A Waterproof LCD Charge Controller

Sold Out
Login for Price
Product Description

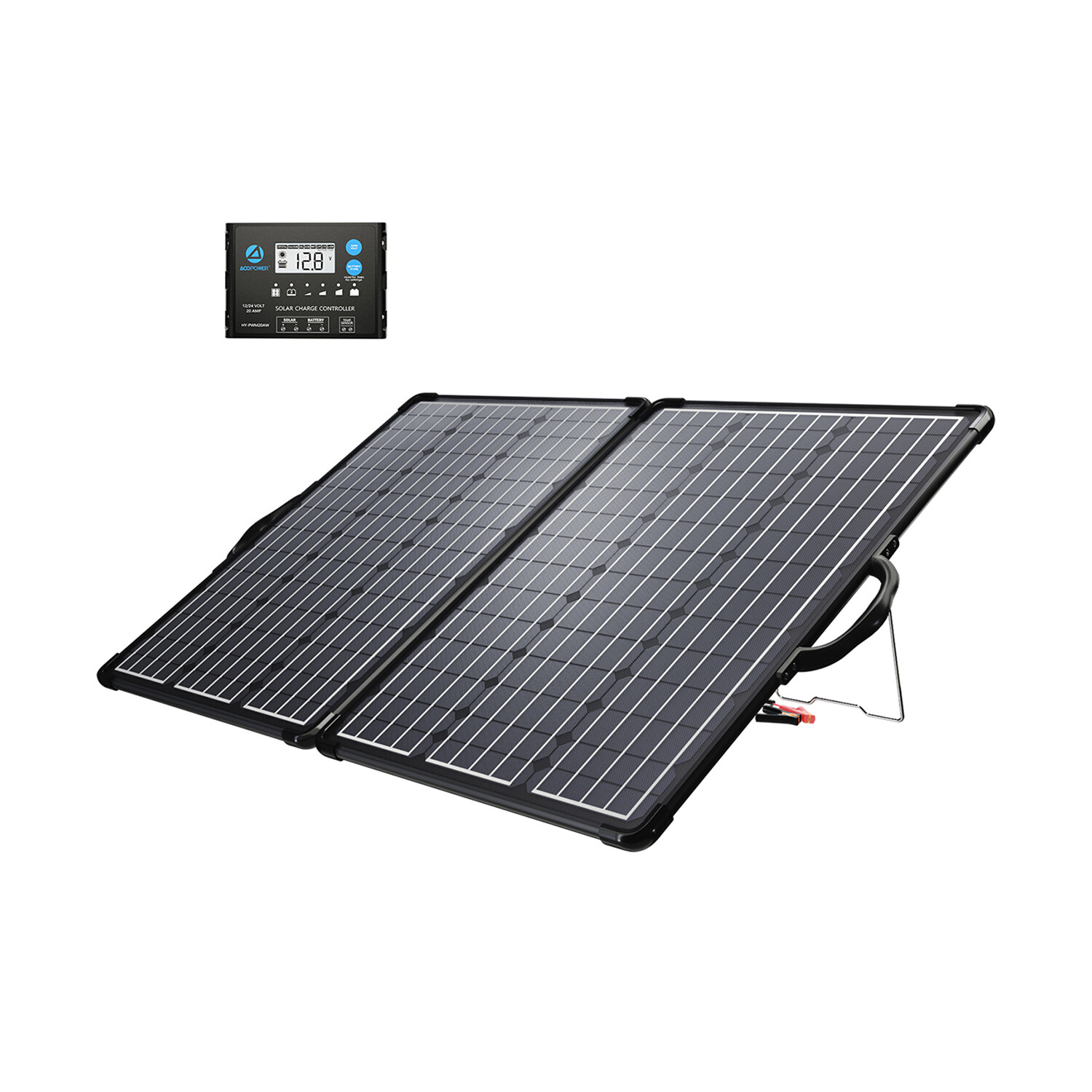

The ACOPOWER 200W Solar Panel Kit is lightweight, portable, and comes with a pre-installed 20A charge controller. It features a 100W monocrystalline solar panel with a built in kickstand for easy set up. When you're done, the panel easily folds up to protect it from damage.

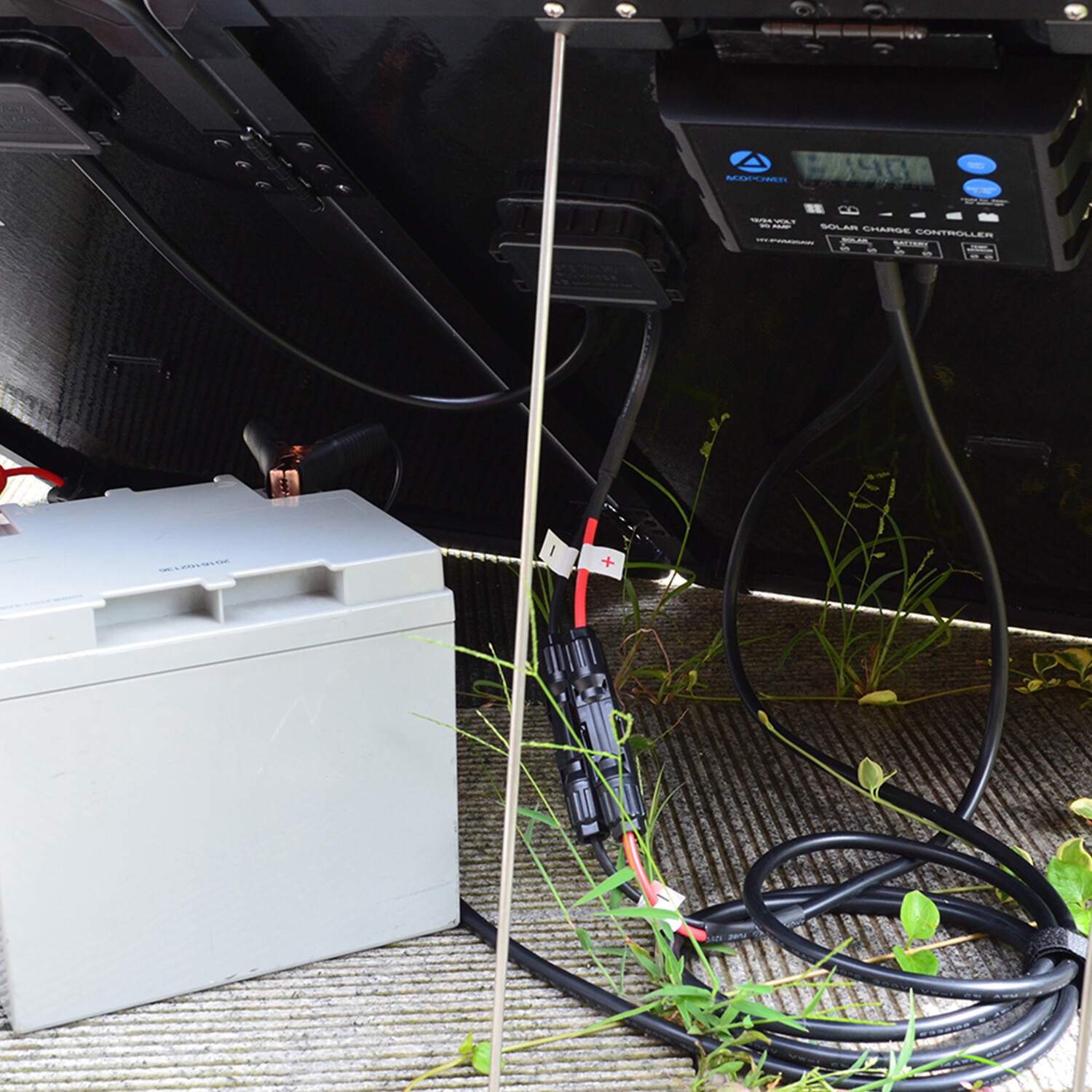

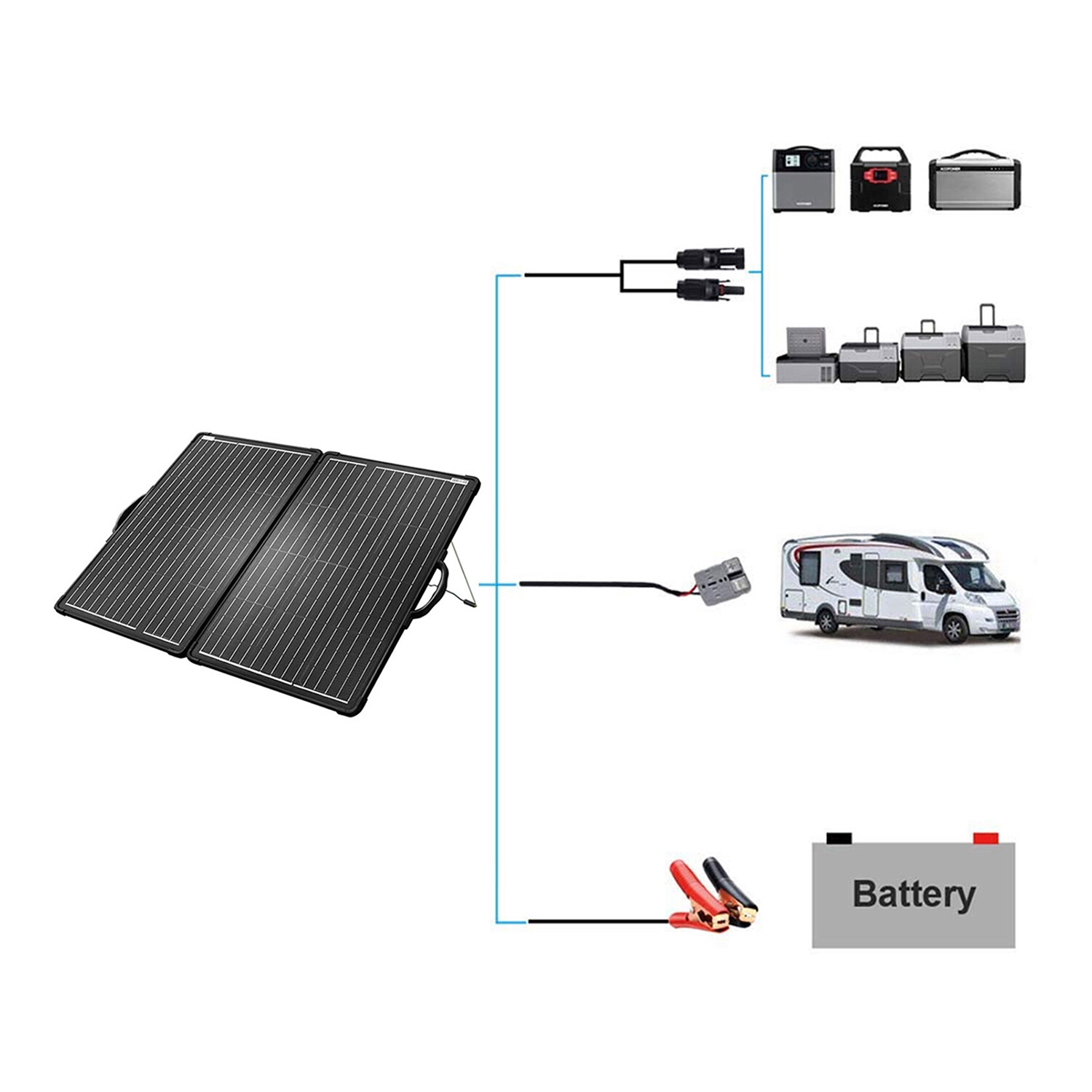

The included charge controller protects battery against unsafe electrical conditions and must be used to charge 12V batteries. To charge solar generators with a built-in charge controller, simply use the MC4 cables provided and plug them into the cables that came with your power station to charge. A 12V battery and solar generator can be charged at the same time.

Product Details
  • ColorsBlack
  • OriginChina

— Warranty: Manufacturer's 1 Year

Includes:
— 200W Portable Solar Panel
— 20A LCD Charge Controller
— User Manual

ACOPOWER 200W Solar Panel
— Monocrystalline Panel For Maximum Charge Output
— Waterproof

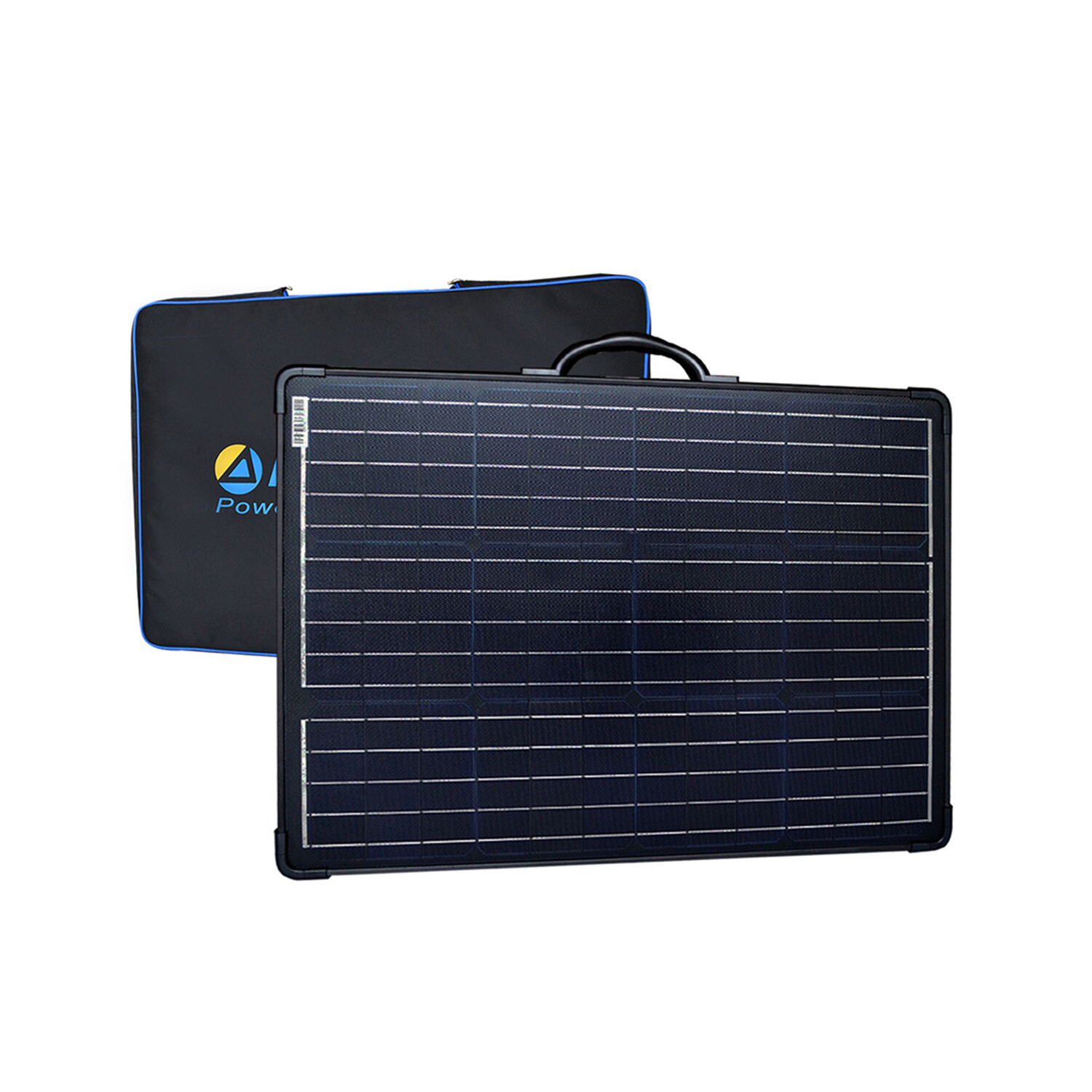

— Compact, Lightweight, & Foldable Design
— Ideal Output: 960 Watt Hours Per Day (Depends On Sunlight Availability)

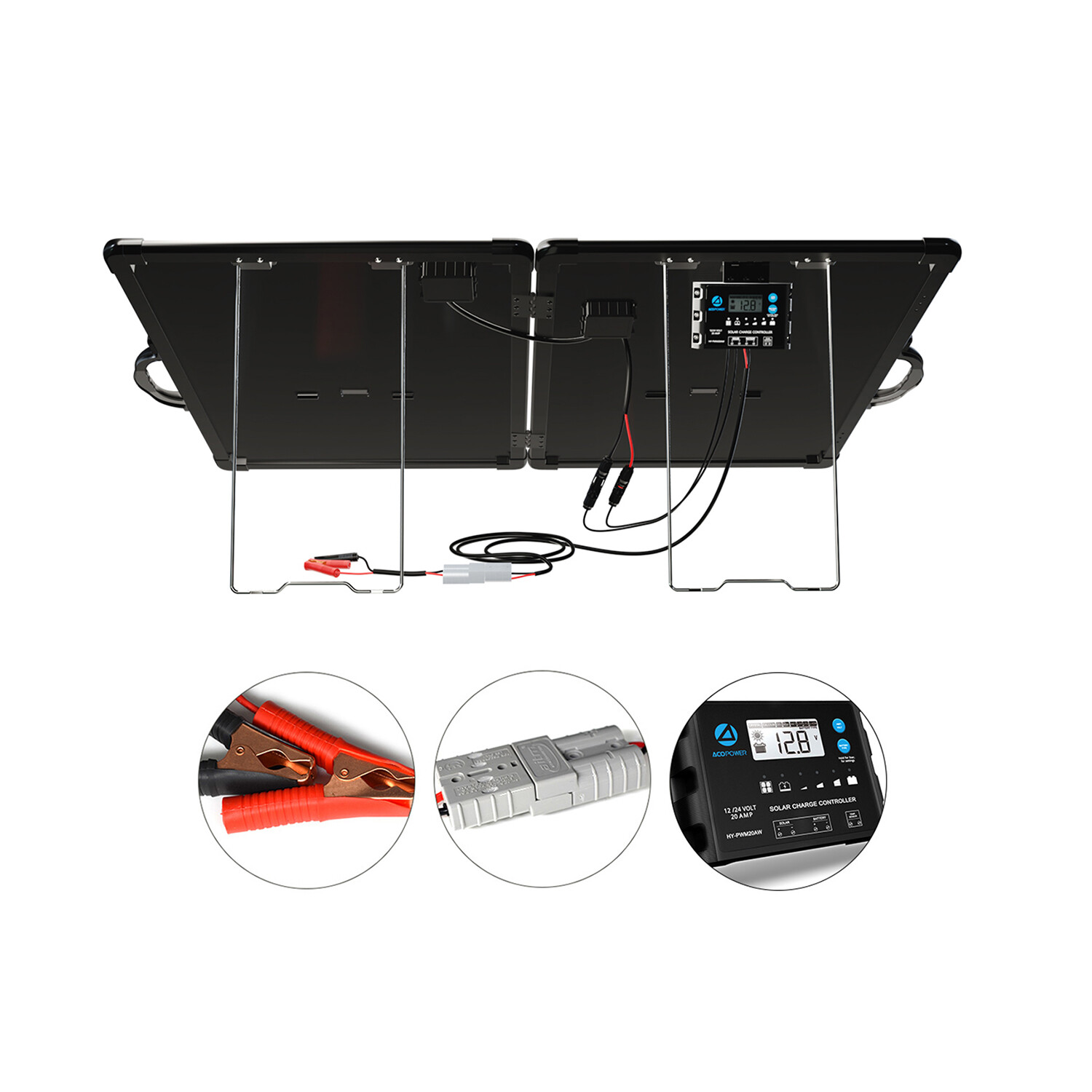

— Pre-installed Stand Allows For Easy & Quick Set-up (MC-4 Connectors Or Anderson Plug Allow Easy Installation To RV / Camper / Trailer Battery Unit For Pre-wired RVs Or Campers)
— Compatible With 8 Different Types Of Batteries: Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal & Calcium
— Module Type: 2×100W
— Open-Circuit Voltage (Voc): 23.4V
— Short-Circuit Current (Isc): 11.56A
— Maximum Power: 200W
— Maximum Operating Voltage (Vmp): 19.8V
— Maximum Operating Current (Imp): 10.1A
— Size: 31.5"L x 27"W x 2"H
— Weight: 20.9 lb

20A Solar Charge Controller
— Waterproof Design, Suitable For Indoor, Outdoor, Camping, Boats, & RV Use
— 20 Amps 12V/24V Auto Continuous Charging Capacity, Enables Use Of Up To 12V/360W & 24V/720W
— Negative Ground Design

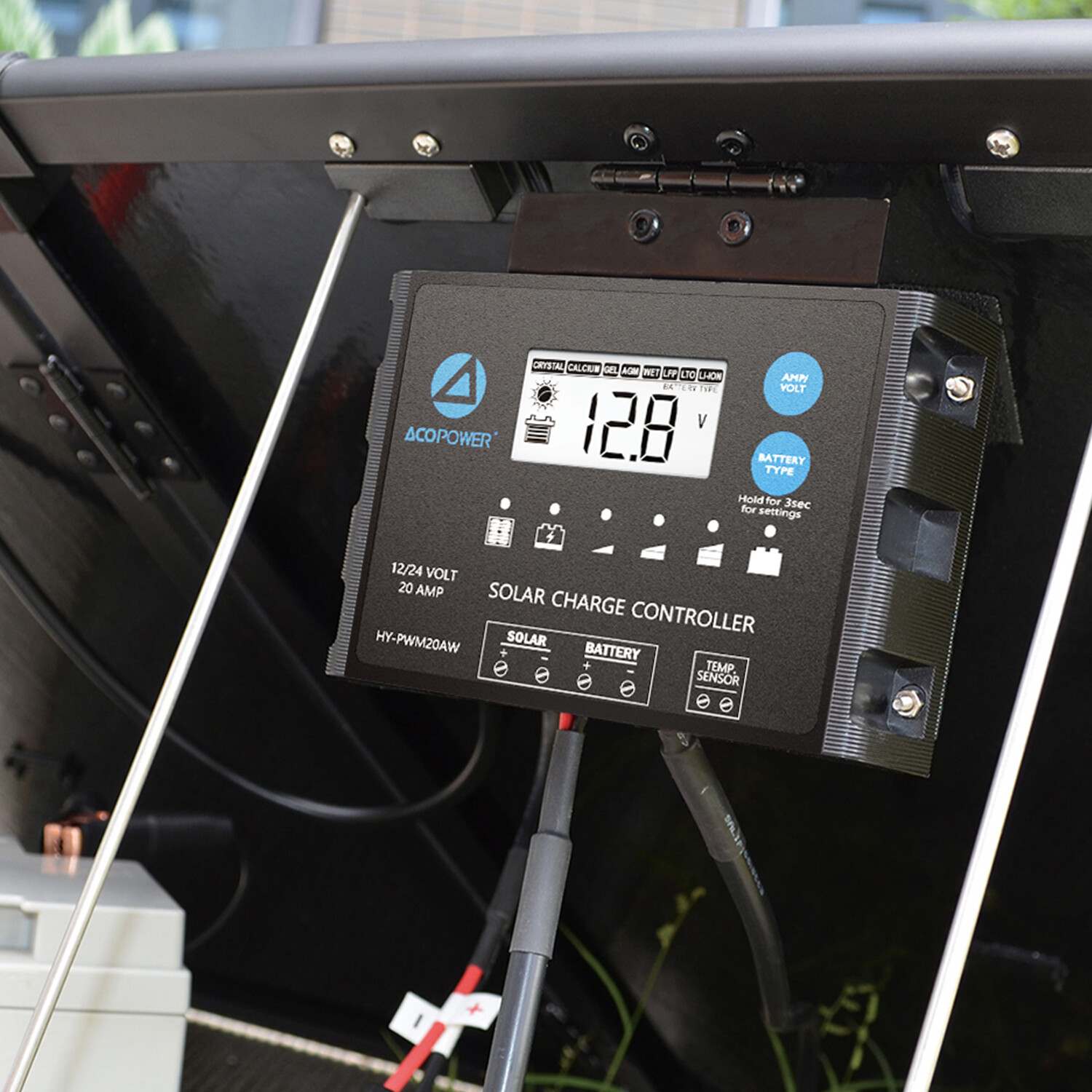

— Large LCD Display: Shows Volts, Amps, Amp Hours & Battery Presets
— Nominal System Voltage: 12V/24V DC
— Rated Charge/discharge Current: 20A
— Max. PV Open Circuit Voltage: 50V
— Grounding: Common Negative
— Battery Start Charging Voltage: 3V
— Temperature Compensation Coefficient: -24mV/°C
— Operating Temperature: -40°F To 140°F
— Storage Temperature: -40°F To 185°F
— Terminals: Up To 10 AWG
— Enclosure: IP65
— Dimensions: 5.59"L x 3.7"W x 1.06"H
— Weight: 1.1 lb

FAQ
Can these panels be daisy chained together with more panels to increase power?

Yes, it can, but you need to use an external proper charge controller for the expanded size.

What is this?

This is a foldable solar kit with 2 of 100w panel with 20A charge controller. The panel is lightweight and designed without glass,

Do these solar panels retain or store power?

No, it is for charging batteries or power stations.

Shipping Information
  • Shipping Availability
    Canada, United States (EXCEPT Hawaii, Alaska)
  • Shipping Policy
    Standard Ground Shipping
  • Ship In
    Less than 1 week ⓘ
  • Return Policy
    Final sale, not eligible for return or cancellation
