Kiwi 2

Bulet Points:

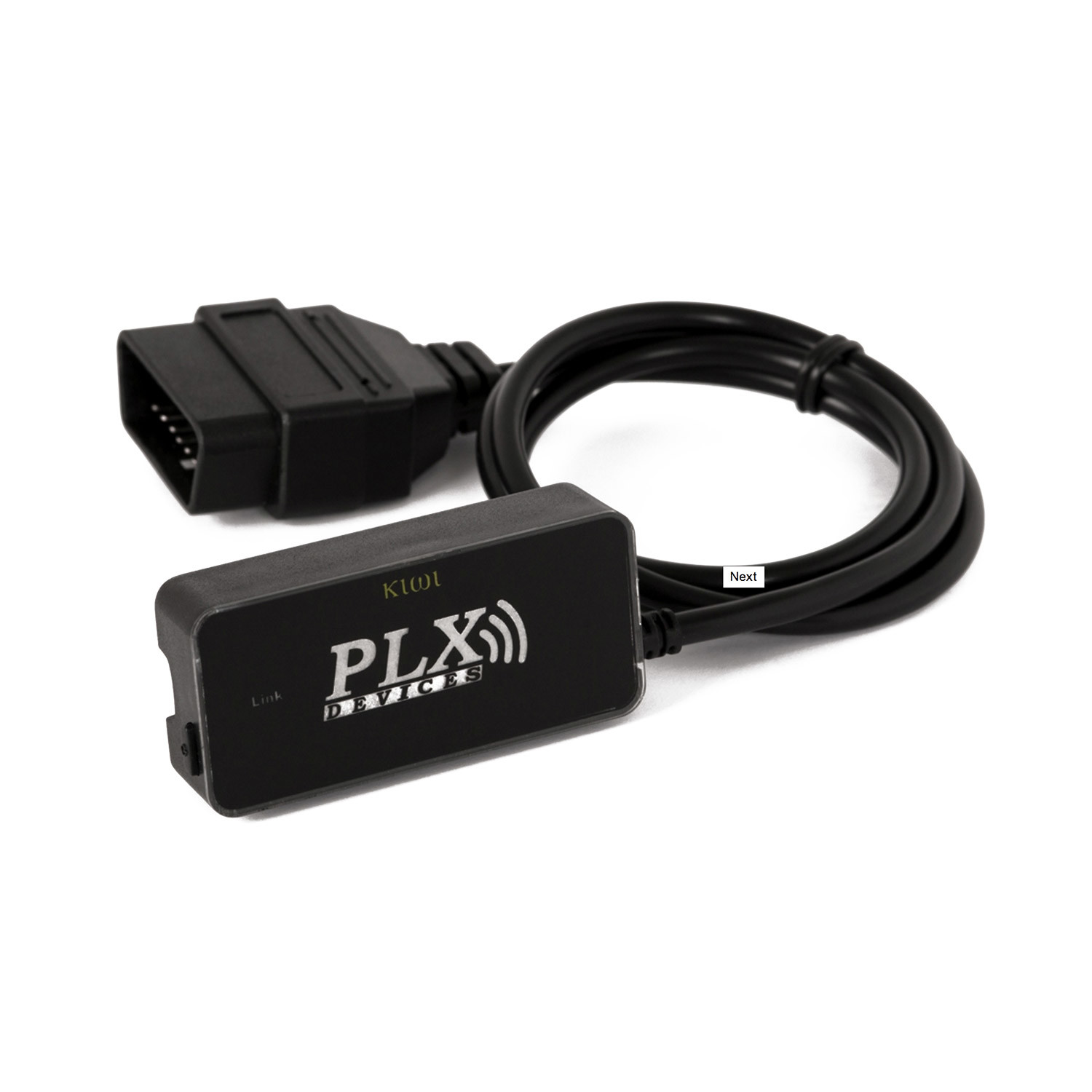

Kiwi 2 Wifi - OBDII to smartphone interface for iPhone, iPad, iPod Touch. Works with 1996 and later vehicles. Compatible with ELM327 apps including DashCommand, Rev, Dash, Roaders, Speedport, Harry's Lap Timer Pro, BMWhat, OBIE, DragFX, ScanXL for PC and more. Plug and play and installs in seconds.

Overview:

Kiwi 2 Wifi is a plug and play automotive tool that connects to the onboard diagnostic port (OBDII / CAN). This tool communicates and retrieves information from your car's computer and wirelessly transmits to any iPhone, iPod Touch and iPad. It is compatible with 1996 and later vehicles and installs in seconds. The Kiwi 2 Wifi can efficiently monitor a vehicle's MPG, data log engine parameters, read/reset engine trouble codes and monitor real time engine performance. Simply connect your device to the Kiwi 2 Wifi through a wifi connection, and launch the compatible app of your choice to obtain vital information about your vehicle.

The Kiwi 2 Wifi includes several improvements over the first generation award winning Kiwi 1 Wifi. It now comes with a sleek new design and is 0.25 inches thinner. The cable length has been reduced from 6 feet to 3 feet, making for a cleaner permanent installation. It incorporates an elm327 compatible interface and it works with ISO9141, VPW, PWM, and CAN protocols.

The Kiwi 2 Wifi incorporates a new advanced power saving circuit, designed to shut off power to essential functions of the unit allowing the Kiwi 2 Wifi to be permanently installed in your vehicle without draining your vehicle's battery. After 5 minutes of inactivity, the Kiwi 2 Wifi automatically enters a low power sleep mode. To turn the unit back on, a simple press of the soft switch wakes the device back up.

The Kiwi 2 Wifi includes an 8 pin port on the back designed to be mated with the PLX iMFD Adapter. This allows you to connect high performance aftermarket sensors such as wideband air/fuel ratio, exhaust gas temperature, vacuum/boost, air intake temperature, fluid pressure and fluid temperature and view on your iOS mobile device. This solution is desired for applications where vehicles do not support certain sensors and/or the car's computer does not report them. With the PLX iMFD Adapter attached, the best of both worlds of fully plug and play OBD2 / CAN data as well as high performance aftermarket sensors can be obtained.

Features • ◦ Depending on the application, the following features may be available:
* Check Engine Diagnostics
* Real-time Gauges
* Fuel Efficiency and MPG
* Engine Sensors
* Customizable Dashboard
* Real-time Dyno
* Data Logging
* GPS Track Mapping
* Skid Pad
* Video Recording and Data Overlay
* iMFD Aftermarket Sensor Interface •
* Included Items: ◦ Kiwi 2 Wifi Main Unit
* Kiwi 2 Wifi Product Box
* User Manual
* * All applications are downloaded through the Apple App Store.
* *Some apps may need to be purchased separately from the Kiwi Wifi. •
* Awards: ◦ Winner of SEMA Best New Mobile Electronics Entertainment Award 2010
* Winner of 8 Global Media Choice Awards 2010-2011
* Winner of Popular Mechanics Editors Choice Award 2009

Technial Specs:

* Physical Dimensions: 1.25 x 2.72 x 0.60 inches
* Power Consumption: 1.24 Watts (Typical), 0.1 Watt (Sleep)
* Power Saving: Intelligent low power sleep circuitry
* OBDII/CAN Protocol: ISO-9141, VPW, PWM, KWP 2000, 11Bit CAN, 29Bit CAN
* Compatible Vehicles: 1996 and later vehicles
* Operating Temperature: 0 - 80 Degrees Celsius
* Operating Voltage: 10 - 18V
* Wireless Standard: Wifi 802.11 a/b/g
* Range: ~50ft line of sight
* Enclosure: Automotive Grade Plastic
*
*
* Depending on your vehicle and the application that you choose to use, sensor support will vary. However in most vehicles the following sensors are reported through the onboard diagnostic port.
*
* RPM
* Vehicle Speed
ThrottlePosition
Engine Load
Absolute Engine Load
Engine Timing
Air Intake Temperature
Coolant Temperature
Ambient Air Temperature
Intake Pressure (MAP)
Air Flow (MAF)
Fuel Pressure
Fuel Pressure Relative
Fuel Level
Barometric Pressure
Catalytic Converter Temperature
ECU Voltage
OBD Type
Short Term Fuel Trim (Bank 1)
Long Term Fuel Trim (Bank 1)
Short Term Fuel Trim (Bank 2)
Long Term Fuel Trim (Bank 2)
Oxygen Sensor Voltage1 (Bank 1)
Oxygen Sensor Voltage1 (Bank 2)
Oxygen Sensor Voltage2 (Bank 1)
Oxygen Sensor Voltage2 (Bank 2)
