Swytch Bike
50-Mile Swytch Conversion Kit
Product Description
The 50-Mile Swytch Conversion Kit can turn virtually bike into an eBike. It's 50% lighter than most other kits, and also instantly removable, so you can turn your bike back into a regular bike at the drop of a hat.
Simply replace your regular front wheel with Swytch's compact and lightweight hub motor wheel. The handlebar-mounted power pack weighs just 3kg, and can be attached instantly, providing power assistance up to top speeds of 20mph.
The kit also includes easy-fit pedal and brake sensors - simply start pedaling to receive motor assistance, and pull your brakes to for instant motor cut-off.

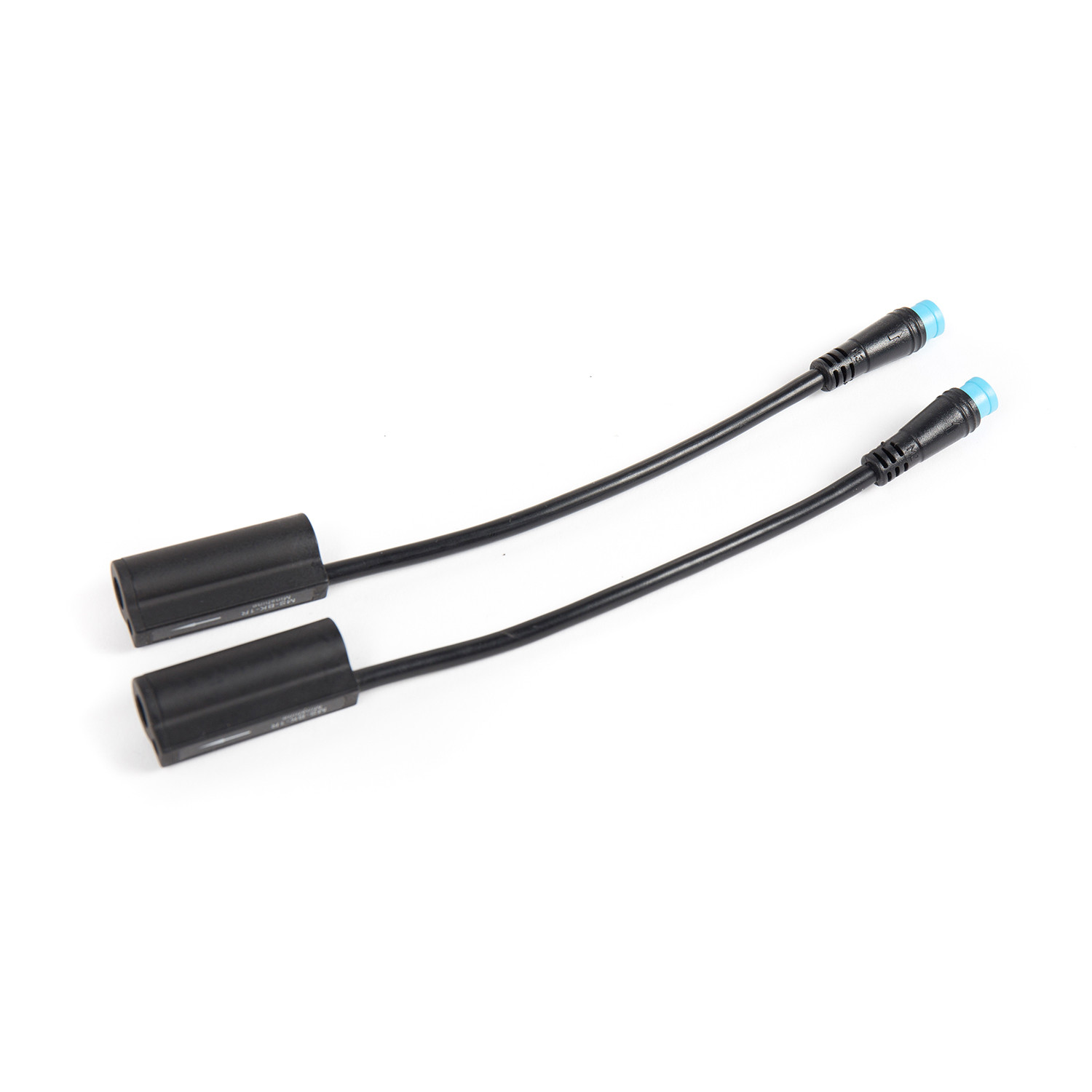

The standard easy-fit brake sensors work with any wired brakes. The easy fit sensor can be installed instantly and is compatible with most bicycles
The kit offers a fully waterproof design with taped seams and a rubber socket for USB output, plus a custom-designed and patented Swytch bracket with integrated sliding contact connectors, provided with spacer rubber rings to enable compatibility with all handlebars sizes.
Best of all - if you run out of battery, your Swytch bike will work and function like a normal bike. The motor wheel has a freewheel mechanism – so you’ll have no drag when you cycle with no power.
Product Details
- Measurements
Power Pack: 270H x 150D x 250W mm
— 10Ah 360Wh Lithium-Ion battery with 20A BMS High quality LG branded 18650 Cells 2500mAh
— Charge Time: 6 Hours
— Range: 50 Miles on Medium Power
— UK-EU-USA Charger Included (Based on Delivery Address)
— Expected Lifetime: 800-1000 Cycles Expected Lifetime (approximately 3 Years)
— On-Off Button 5 Level Power Assist Front Light Switch On-Off 6kph Walk Mode
— Brushless DC 3-Phase 6MOSFET Sine Wave Controller with Hall Sensing for Smooth Control and Acceleration
— 2A Max Output Current, 7A Rated Current
— Internally Geared Motor with A Freewheel Mechanism to Provide Low-Drag Riding
— Weight Limit: 440lbs
— Will Work Up To a 32% Grade
— 6:1 Reduction Ratio for High Torque Low-Drag Riding
— 36 Silver Spokes with Double Walled Alloy Rim
— Extremities in Weather Conditions Will Not Affect the Battery, but It's Recommended to Periodically Charge Your Battery Through the Winter Months if You Are Not Using Your Swytch Kit), to Ensure that The Battery Cells Stay Alive
— NOTE: Will Not Work On Bikes With Internal Front Brakes
— Warranty: Manufacturer's 1 Year
